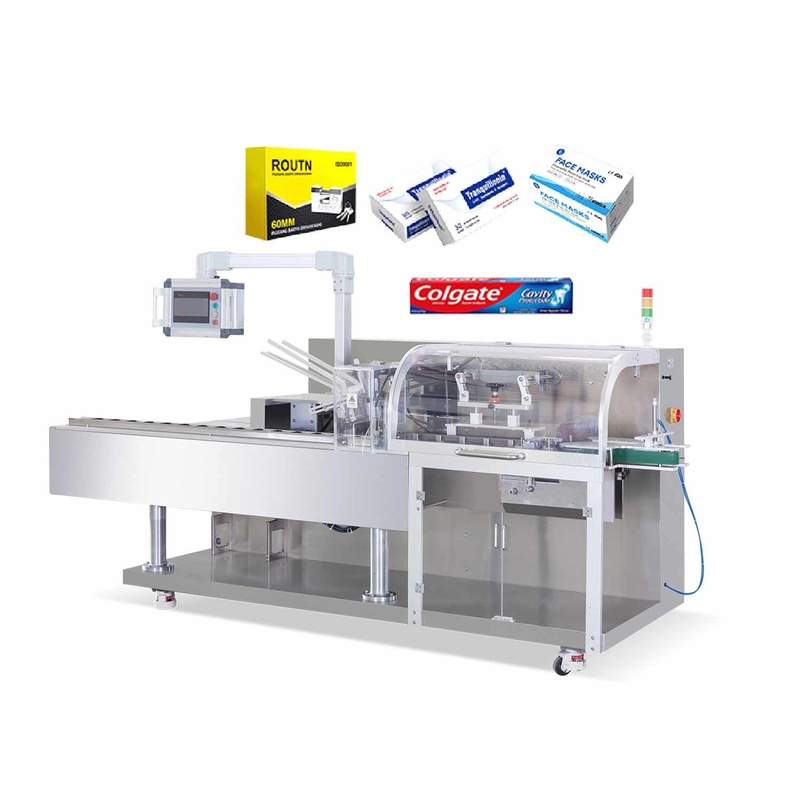

Automatic vertical cartoning packing machine CE Standard can packed various products. Those materials can be pack by cartoning machine CE Standard aluminum plastic plate and aluminum aluminum plate. And these machine CE Standard can cartoning electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products. These type cartoning packing machine CE Standard can be connected with the blister packing machine. And machines CE Standard can line with three dimensional transparent film wrapping machine and strapping machine CE Standard to form a production line. The automatic cartoning packing machine CE Standard has strong compatibility and can pack products of various specifications on one machine. The feature of machine CE Standard is High degree of automation,from feeding, suction carton, forming. And the cartoning machine CE Standard has on line transmission and folding of leaflet(1-4 folds). these machine CE Standard with top fold flaps,carton sealing(mechanical sealing or hot melt glue).
Production Capacity (boxes/min) | 15-100 | 15-80 | 10-100 | 15-80 | 10-70 | 10-50 |
Box Maximum Size (L*W*H, mm) | 220*90*60 | 220*120*60 | 220*120*60 | 220*120*60 | 220*145*100 | 220*165*100 |
Box Minimum Size (L*W*H, mm) | 70*20*20 | 70*20*20 | 50*25*15 | 50*20*15 | 100*80*20 | 100*80*20 |
Packaging Materials | 300-400 | 300-400 | 250-400 | 300-400 | 250-300 | 250-300 |
Air Consumption (m³/h) | 20 | 20 | 20 | 20 | 20 | 20 |
Total Power (Kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Power Supply | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz |
Overall Size (L*W*H, mm) |
2600L 1350W 1650H |
2600L 1350W 1650H |
3200L 1200W 1700H |
2500L 1350W 1650H |
2800L 1550W 1650H |
2800L 1550W 1650H |
Weight (Kg) | 1200 | 1250 | 1300 | 1350 | 1300 | 1300 |
