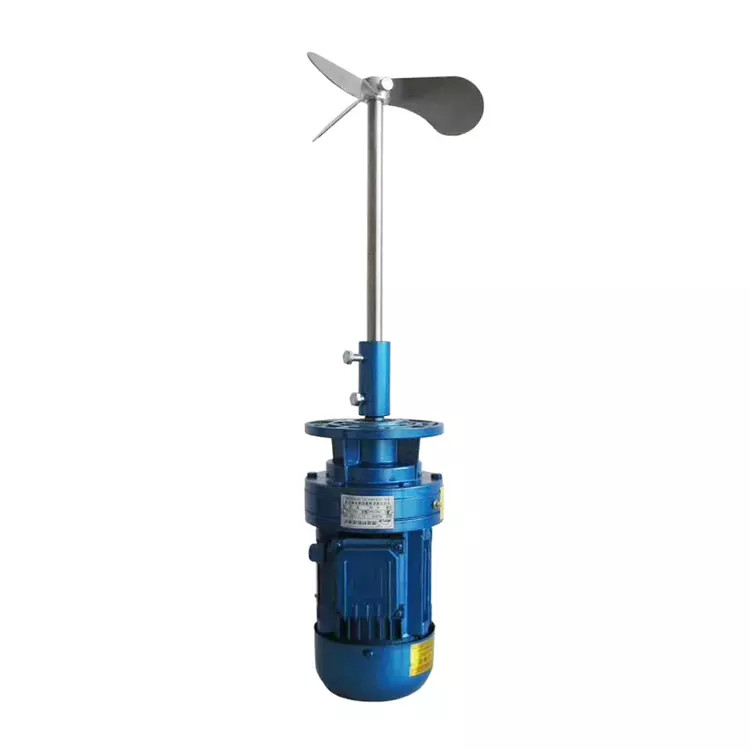

Mixer Agitator Equipment
>
|
| Place of Origin | Zhejiang, China |
| Brand Name | LTPM China |
| Certification | CE |
| Model Number | RJM-Series |
| Voltage | 100V/110V/ 220V/ 240V/ 380V/ 415V |
| Power | 0.37KW-11KW |
| Frequency | 50HZ/ 60HZ |
| Phrase | signal phrase/ three phrase |
| Leaf type | three leaf; - shape; three blade high efficiency type |
| Connection mode |
Shaft sleeve connection Flange connection Rack connection |
| Speed | Adjustable OR fixed 65/130/1450rpm |
| Shaft | 304/316 stainless steel or plastic lining |
| Feature | VFD speed adjustable motor or explosionproof motor available |
| Advantage |
1. Cycloid pin gear reducer adopts planetary transmission principle with small tooth difference and cycloid pin gear meshing transmission mechanism 2. High speed ratio and high efficiency 3. Compact structure and small volume 4. Easy to disassemble and repair 5. Stable operation and low noise 6. Reliable use and long service life 7. Strong overload capacity, impact resistance and small inertia moment |
1. The above model selection is only applicable to sewage dosing and mixing. If there are materials with high viscosity or specific gravity, please contact us for selection.
2. The capacity and size of the container must be close to the data in the table before the model can be selected. If the size difference is large, please contact us Help with selection.
3. The shaft length and impeller diameter can be adjusted according to the actual container size.
