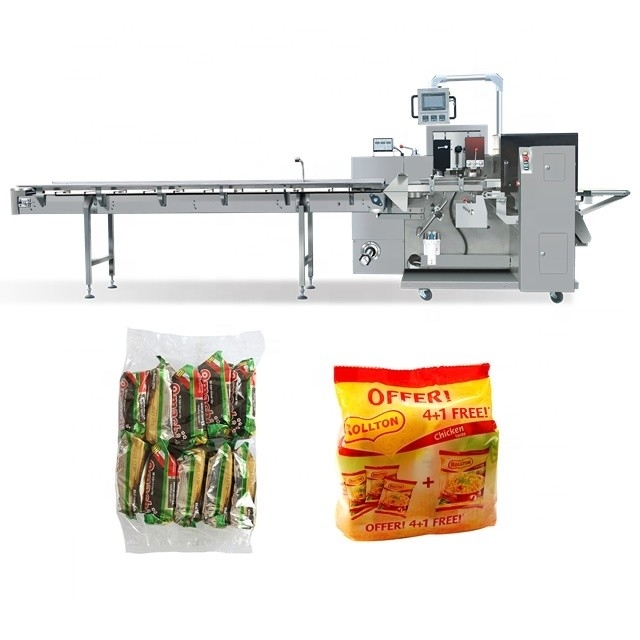

Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles
  • Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles
  • Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles

Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number DXD-100
Product Details
Function:
PACKING
Packaging Type:
Stand-up Pouch, BAGS, Film, FOIL, Pouch
Voltage:
220V 50 Hz
Packing Range:
10-1000g
Packing Accuracy:
0.1-1.0g
Surface:
Dimple
High Light:

Flow Pillow Multipack Packaging Machine

,

Horizontal Multipack Packaging Machine

,

Instant Noodles Multipack Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description



Speed: instant noodle 200 bags per minute of each set machine with seasoning bags Auto dispenser for seasoning flavor bags Full
Automatic No Manual



Main Features of Automatic Instant Noodle Packaging
* Three servo motors driven;

* Human machine interface, PLC program controlled;

* Photo cell sensor, auto tracking for cutting position;

* Film holder with auto centering device

* Security protactive measures reach EU CE certificate

* Cantilevered touch screen

* Adjustable bag former, alarm device for emergency stop,

* Misplaced item stop device



Auto Feeder for Instant Noodle packaging:

* Auto arranging products, with functions No product No pack, speed up and down automatically.

* Four belts make a high speed; independent control; input controlled by servo motor.

* Independent PLC controlled.
* Independent Touch screen controlled makes the data easy to input and adjust.

* Three Panasonic Servo motor controlled Bag noodle



Main Features of bag noodle 5 in 1:
* Human machine interface, PLC program
* Three servo motor driven, no product no pack.
* Photo cell sensor, auto tracking the cutting position precisely
* Security protective measures reach EU CE certificate
* Box motion type end sealer with hermetic sealing
* 10 receipes, keep up to 10 products data memory
* Cantilevered touch screen
* Adjustable bag former
* Gusset Fold device
* Alarm device for emergency stop
* MIS (Misplaced Item Skip) device
* Resetting end sealer cutter quickly by manual handle while cutting products



Main Features:

* Three servo motor control
* Human machine interface, PLC program
* Keep up 10 products packing data in touch screen.
* Gusset device
* Film Holder with auto centering device* Adjustble Bag former
* Box Motion type end sealer with hermetic sealing
* Bottom Film Feeding

Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles 0

Horizontal Flow Pillow Multipack Packaging Machine For Instant Noodles 1



Main Technical Parameter

Packing weight
100~1000g
Packing bag type
pillow back sealing bags with gusset
Making bag size
(L)80-350mm, (W)80-250mm
Production capacity
25-70 bags / min
Compressed air consumption
0.5 cubic / minute 0.6-0.7Mpa
Power Supply
220V, 50-60Hz, 3.0 Kw
Dimension
1550*1200*1550mm
Weight
500kg
Warranty
5 year









FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
