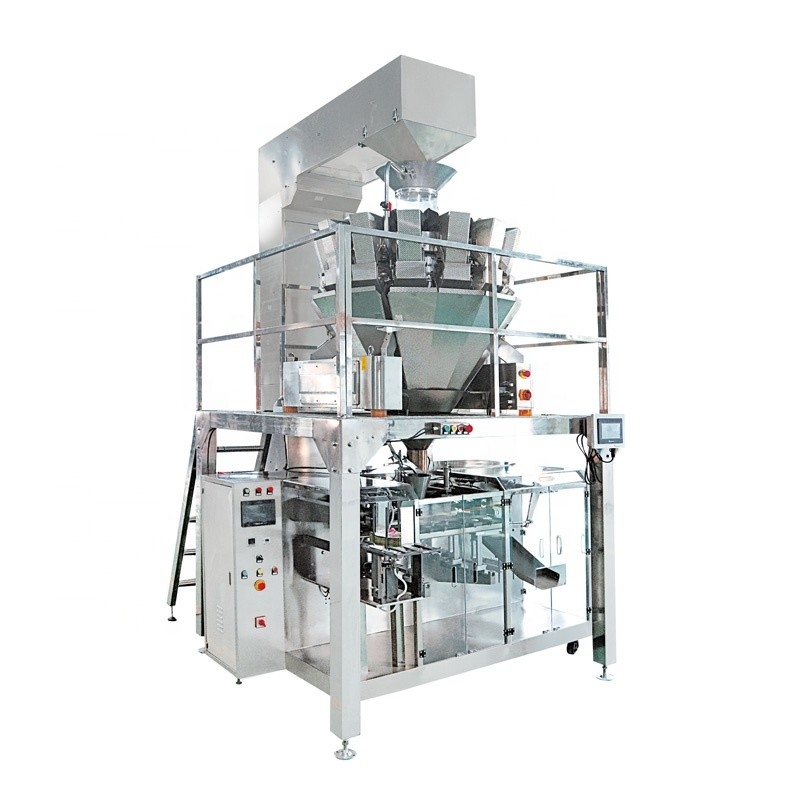

Premade Bag Packing Machine
>
|
|
| Place of Origin | CHINA |
| Brand Name | BHP-240Z |
| Certification | CE |
| Model Number | BHP-240Z |
Standard Features
1) Apply for premade flat or stand up pouch fill and seal as the standard, with zipper as the option.
2) Rigid carbon steel structure, Stainless steel 304 for surface and product touching parts.
3) Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars.
4) PLC and touch screen control.
5) Intelligent PID temperature controller.
6) Frequency converting motor and mechanical combined driven.
7) Discharge chute as the standard, conveyor as the option.
8) Configure with different dosing device for different type of products.
Optional Features
1) Horizontal type pouch magazine
2) Zipper opening
3) Ribbon or other type of coding
4) Multiple fills or seals
Technical Specifications:
| Working position | eight-working position |
| Pouch material | Laminated film PE,PP |
| Pouch pattern | stand-up&zipper pouch |
| Pouch size | W:100-210mm L:100-350mm |
| Filling Scope | 10-5000g( The screw attachment is to be changed) |
|
Weight Accuracy
|
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
| Speed | 10-45pouches/min(The speed depends on the product status and flling weight)) |
| Voltage | 380V 3phase 50HZ/60HZ |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
Application
This machine is applicable for subject to configure with different dosing device , filling with power, granule or liquid into premade pouch and sealing.
