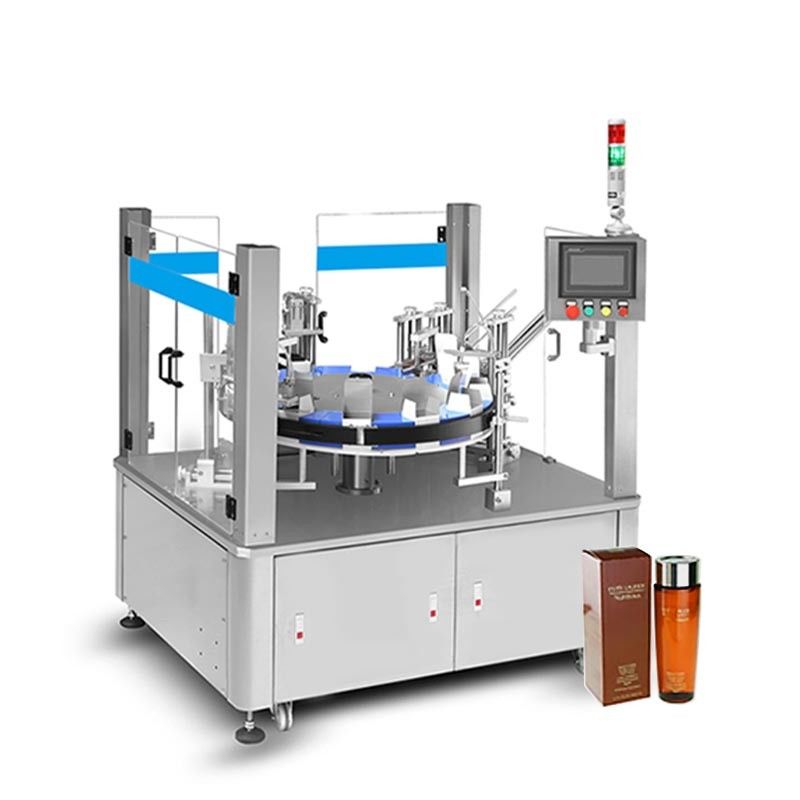

Vertical Automatic Shutdown Carton Packing Machine 50cartons/Min
  • Vertical Automatic Shutdown Carton Packing Machine 50cartons/Min
  • Vertical Automatic Shutdown Carton Packing Machine 50cartons/Min

Vertical Automatic Shutdown Carton Packing Machine 50cartons/Min

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number ZH-50
Product Details
Machine Noise:
Carton Gram Requirements:
Air Pressure:
High Light:

150L/min Carton Packing Machine


Carton Packing Machine 50cartons/Min


380V Vertical Carton Packing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
discuss personally
Packaging Details
wooden box
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

For products including containers, bottles,blister packs, pouches, sachets or tube, and many other high-output application, high speed cartoners will deliver the needed performance and reliability while keeping the project within budget.


Main Feature

* The first domestic carton feeding system has realized the function of adding new cartons without stopping the machine.

* This equipment can be connected to the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realizes automatic work. The back end can be connected with labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.

* Optional functions available: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc. This machine can add auto feeding device molds and printer




1. There is no need to change the mold to change the specifications, it can be realized by only adjusting;


2. It adopts automatic shutdown and main drive motor overload protection device if the items are not in place in the box, which is safer and more reliable;


3. According to customer requirements, a flip-up safety protective cover can be used, which is easy to operate and beautiful in appearance. It can realize linkage production with aluminum-plastic packaging machine, pillow packaging machine, three-dimensional packaging machine, bottling line, filling machine, labeling machine, inkjet printer, online weighing instrument, other production lines and other equipment;


4. Various automatic feeders and boxing systems can be designed according to the requirements of the packaging;



Main Technical Data:

Model ZH-50
Packing speed 30-60 Cartons/min
Carton size range L(40-100)mm×W(12-60)mm×H(12-60)mm
Carton gram requirements 250-350g/m3
Motor power 1.5KW
Power supply Three phase 380V 50Hz
Machine noise ≤80dB
Air pressure 0.5-0.8 Mpa
Air consumption 150L/min
Dimension 1100×1500×1900 mm
Weight 250Kg
