Vertical Cartoning Machine
>
|
| Place of Origin | China |
| Brand Name | LEADTOP |
| Certification | CE certification |
| Model Number | ZH-50 |
Application

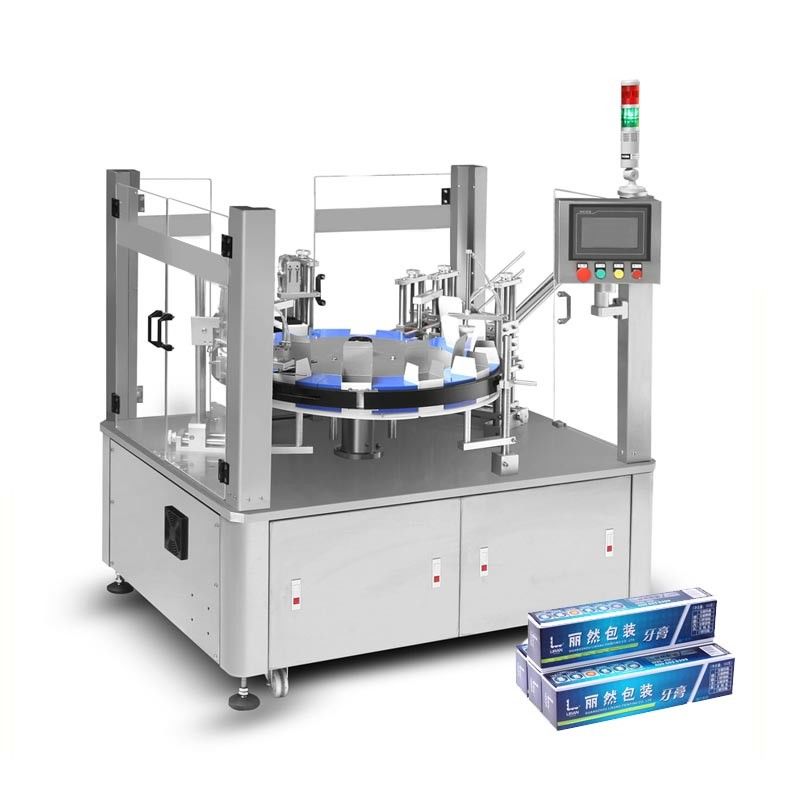

ZH-50 model rotary cartoning machine Its specially design to pack small quantities multi size box. With low cost and only require small area. It is suitable for various sizes of box. Machine is vertical type, multiple functionand require a short time to change mould. It is widely used in pharmaceutical, food and cosmetic industries. Like the medicine bottles, blister board, tubes, tea bag sachets, biscuits, soap, perfume, puff cake, lamp bulb, etc.
Application: Cosmetic, round bottled medicine, food-stuff, etc. packing into square box. Option: Leaflet Inserting, Hot Glue, Hot Ribbon Date Code, Embossed date Code Packing process: Push box into star wheel-> Fold box lower small flap->Press both lower big flaps-> Flatten both big flaps-> Product fall into box-> Product fall into box-> Product fall into box-> Product fall into box->Product push out.
FEATURES AND ADVANTAGES:
* Absolutely Economic Automatic cartoning machine.
* Constructed with materials that meet cG.M.P. or FDA.
* Small footprint is ideal for space sensitive operations. * User friendly designed for high throughput with single operator
Main Technical Data:
| Model | ZH-50 |
| Packing speed | 30-60 Cartons/min |
| Carton size range | L(40-100)mm×W(12-60)mm×H(12-60)mm |
| Carton gram requirements | 250-350g/m3 |
| Motor power | 1.5KW |
| Power supply | Three phase 380V 50Hz |
| Machine noise | ≤80dB |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Dimension | 1100×1500×1900 mm |
| Weight | 250Kg |
