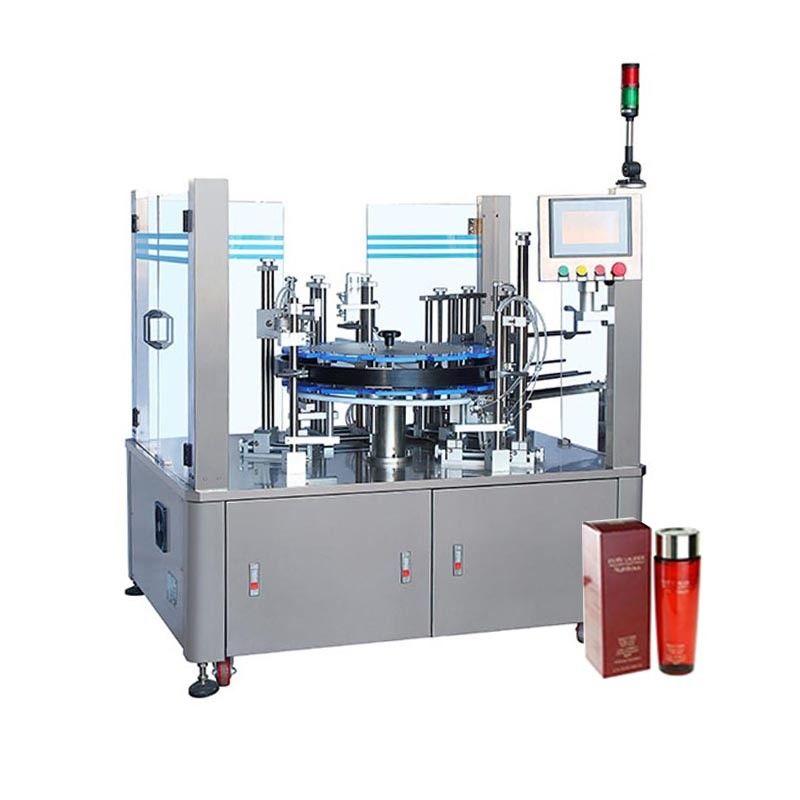

Vertical Cartoning Machine
>
|
| Place of Origin | China |
| Brand Name | LEADTOP |
| Certification | CE certification |
| Model Number | ZH-50 |
Product Description
For products including containers, bottles,blister packs, pouches, sachets or tube, and many other high-output application, high speed cartoners from Danrel will deliver the needed performance and reliability while keeping the project within budget. Our high speed cartoners can be equipped with options to fit the needs of any project, from serialization and plant software integration to custom carton shapes and sizes. Contact us today for help specifying the exact equipment your application needs.
Application
Automatic Cartoning for Pharmaceutical industry, food industry, cosmetics industry and auto parts industry.
Detailed Images
Solid-steel structure design
1. SUS304 materials that meet cG.M.P. or FDA approved material.
2. Small footprint is ideal for space sensitive operations.
3. Security guarding provides safety operation for the operator.
PLC TOUCH SCREEN
Easy operation touch screen for quick setting.
Machine Details
Quick change tooling capable -- reduces downtime during tooling changeover for different size cartons.
Main Technical Data:
| Model | ZH-50 |
| Packing speed | 30-60 Cartons/min |
| Carton size range | L(40-100)mm×W(12-60)mm×H(12-60)mm |
| Carton gram requirements | 250-350g/m3 |
| Motor power | 1.5KW |
| Power supply | Three phase 380V 50Hz |
| Machine noise | ≤80dB |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Dimension | 1100×1500×1900 mm |
| Weight | 250Kg |
FEATURES AND ADVANTAGES:
* Absolutely Economic Automatic cartoning machine.
* Constructed with materials that meet G.M.P.
* Small footprint is ideal for space sensitive operations. * User friendly designed for high throughput with single operator
* Quick change tooling capable -- reduces downtime during tooling changeover.
* Simplified engineering design allowa easy opertion and low maintenace.
* Security guarding provides safety operation for the operator.
