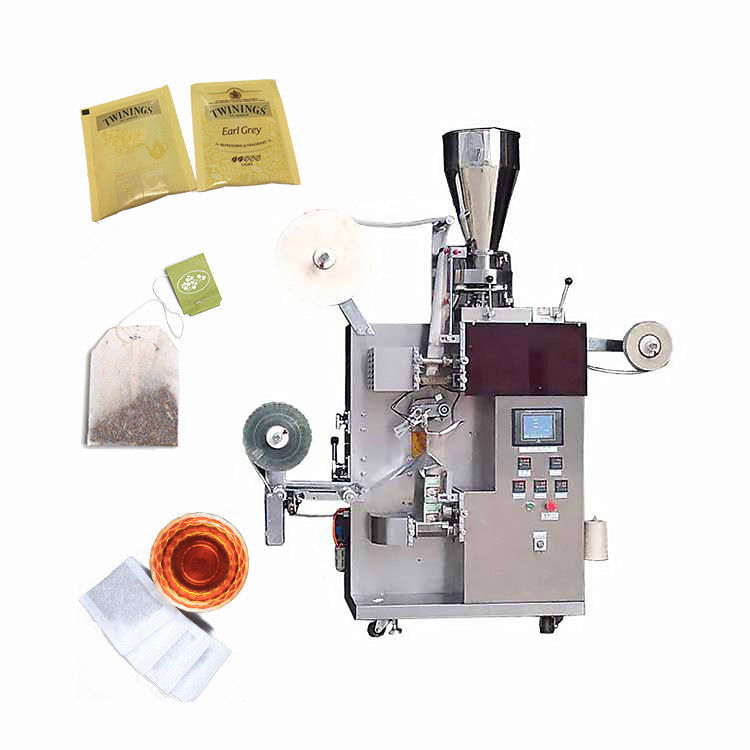

Flat Tea Leaf Pouch Herbal Tea Packaging Machine 40bags/Min
  • Flat Tea Leaf Pouch Herbal Tea Packaging Machine 40bags/Min

Flat Tea Leaf Pouch Herbal Tea Packaging Machine 40bags/Min

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number LTDX
Product Details
Bag Size Of Inner Bag:
L:50-60mm W:30-80mm
Item:
LTDX-115
Bag Size Of Outer Bag:
L:60-120MM W:70-90MM
Capacity:
20-40bags/min
Filling Range:
2-12ml
Power:
220V,50HZ,3.35KW
Weight:
700kg
Dimension:
1200*850*1900mm L*W*H
High Light:

220V Herbal Tea Packaging Machine

,

Herbal Tea Packaging Machine 40bags/Min

,

80mm Bag Herbal Tea Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Product introduction:

This machine is controlled by microchip computer and assisted with high precision sensors. It’s able to weighing, filling and packaging swift and steady. The structure of this machine is concise and simple, easy to use and able to switch different size of bag former to satisfy different packaging requirement.



Equipment details



Control panel

The LCD screen is realistic, the parameter setting and temperature display are clear, and the operation is simple and quick.



Control System

Intelligent microcomputer controls Xirong, with strong anti-interference performance, good stability and high degree of automation, and can be equipped with a variety of systems.



power system

This machine adopts a high-efficiency and energy-saving power transmission system, which can adjust the working speed of the packaging machine to ensure the long-term stability of the machine.



Stepper motor

The packaging machine is equipped with a high-quality stepper motor, which makes the packaging machine's film feeding and drawing more accurate and stable.



Cursor positioning

The machine adopts a high-sensitivity cursor positioning system, which makes it more accurate and quicker to identify the color code, and the cursor positioning adjustment is simple.



Measurement method

The packaging machine adopts volumetric metering method, and fine-tuning the weight through the measuring cup, and the universal energy cup can also be selected.

Flat Tea Leaf Pouch Herbal Tea Packaging Machine 40bags/Min 0

Specifications:





Item LTDX-115
Bag size of inner bag L:50-60mm W:30-80mm
Bag size of outer bag L:60-120MM W:70-90MM
Capacity 20-40bags/min
Filling range 2-12ml
power 220V,50HZ,3.35KW
Weight 700kg
Dimension 1200*850*1900mm L*W*H
