Vertical Cartoning Machine
>
|
| Place of Origin | China |
| Brand Name | LEADTOP |
| Certification | CE certification |
| Model Number | ZH-50 |

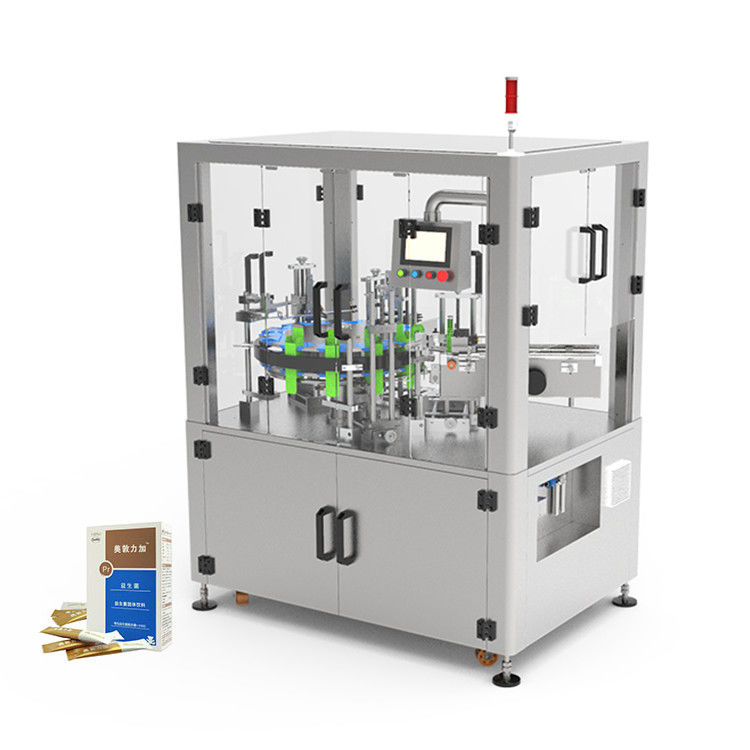

Condom paper box cartoning machine is a new model developed by our company in combination with advanced technology at home and abroad. It is a high-tech product integrating light, electricity, gas and machinery. As a result, this food paper box packing machine’s performance and work efficiency have been greatly improved, the requirements of fast are realized, and the stable and reliable state is still maintained during fast operation.
Features:
1. Compact Type Feeder can be for single pouches, multi- pouches cartoning production line.
2. High power photoelectric detecting device for counting.
3. Compact Type Feeder not only for Condom, but also suitable for sachet pouch, soft strips, wound plaster, coffe bag into carton.
Box Packing Machine:
1. PLC automatic control system, frequency conversion speed regulation, and electrical components adopt internationally renowned brands.
2. Use man-machine interface operating system.
3. Mechanical overload will stop automatically.
4. Automatically reject cartons that lack packaging and instructions.
5. Fault display, alarm and finished product count.
Your Advantages
1. High flexibility: nearly all products possible
2. Short setup times
3. Small footprint
4. Very user friendly
Application
Product Parameters:
| Model No. | ZH-50 |
| Packing speed: | 20-50box per min |
| Paper box's largest size | 200*80*80mm |
| Paper box's smallest size | 60*20*20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 150L/min |
| Machine measurement: | 1100*1500*1900 mm |
| Machine weight | 250Kg |
