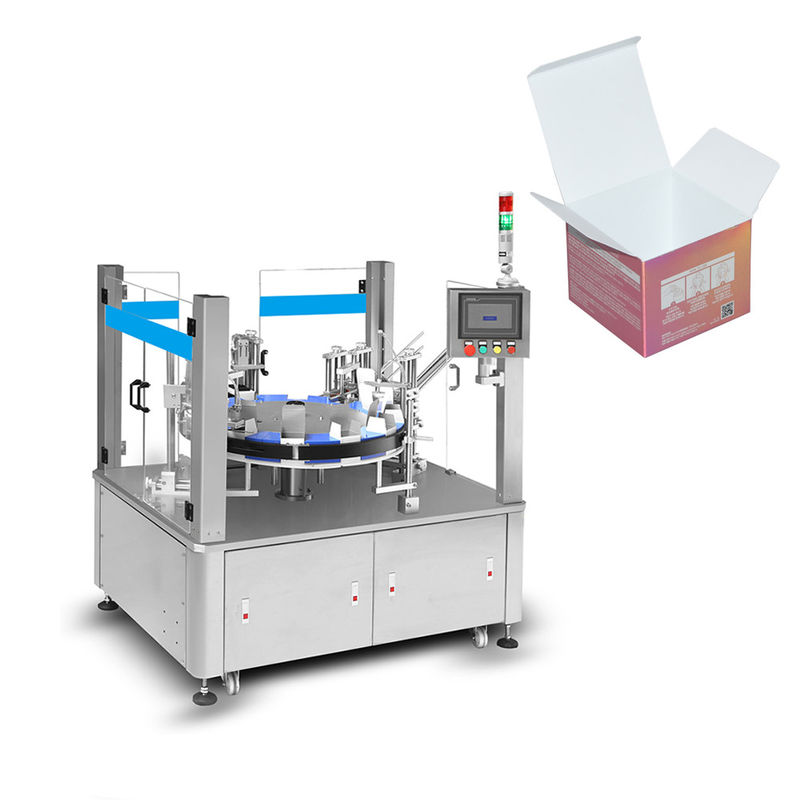

Vertical Cartoning Machine
>
|
| Place of Origin | China |
| Brand Name | LEADTOP |
| Certification | CE certification |
| Model Number | ZH-50 |
Semi-automatic cartoning machine is divided into: carton opening mechanism, automatic conveying and positioning mechanism, cartoned product conveying mechanism, hot melt glue machine spray gun, and automatic box sealing mechanism. The equipment is suitable for the automatic cartoning and sealing process of carton products.
Features
1. The manipulator automatically grabs the carton, and after opening the carton in the air, it will fall into the automatic conveyor chain.
2. The conveyor chain automatically transports the carton products, and initially seals one end of the carton.
3. The cartoning mechanism automatically pushes the product into the carton.
4. Automatic spraying of hot melt glue on both ends of the carton during the transportation of the conveyor chain.
5. Automatic folding box pressing
working principle
The semi-automatic cartoning machine feed is generally divided into three entrances: the manual entrance, the medicine bottle entrance and the machine package box entrance. The entire process from machine-pack box feeding to packaging molding can be roughly divided into four stages: unboxing, opening, filling, and closing. After the unloading action, it goes down to the main line of the box. A guide rail is used to fix the carton and a push plate is used to open the carton. At the same time, there will be two forward-movable detents rising from below, from the front and rear directions. Jam the sides of the carton, open the box at a right angle and move it forward to the filling area. After filling in the filling area, the mechanism of the machine will fold the ears into the left and right guide rails, and then perform the closing action. The pre-closing mechanism will first bend the tongue of the box, and then a push plate pushes the lid to bend so that the tongue is inserted into the box and the lock is fastened. The closing action is a critical action, and the quality of completion has a lot to do with the structure of the carton and the accuracy of the machine adjustment.
Main Technical Data:
| Model | ZH-50 |
| Packing speed | 30-60 Cartons/min |
| Carton size range | L(40-100)mm×W(12-60)mm×H(12-60)mm |
| Carton gram requirements | 250-350g/m3 |
| Motor power | 1.5KW |
| Power supply | Three phase 380V 50Hz |
| Machine noise | ≤80dB |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Dimension | 1100×1500×1900 mm |
| Weight | 250Kg |
Cartoning machine features
· Multi-function boxing operations, all kinds of complex boxing tasks are completed at the same time;
· It does not take up space and exerts a large function;
· Step-by-step movement, double-vacuum suction cup type taking box, fast speed and high stability;
· Optional date batch number printer and manual insertion device;
· PLC control, fault removal display device, easy to operate;
· The inching device of the machine allows the equipment to be moved arbitrarily, which is convenient for adjusting boxes of various specifications.
