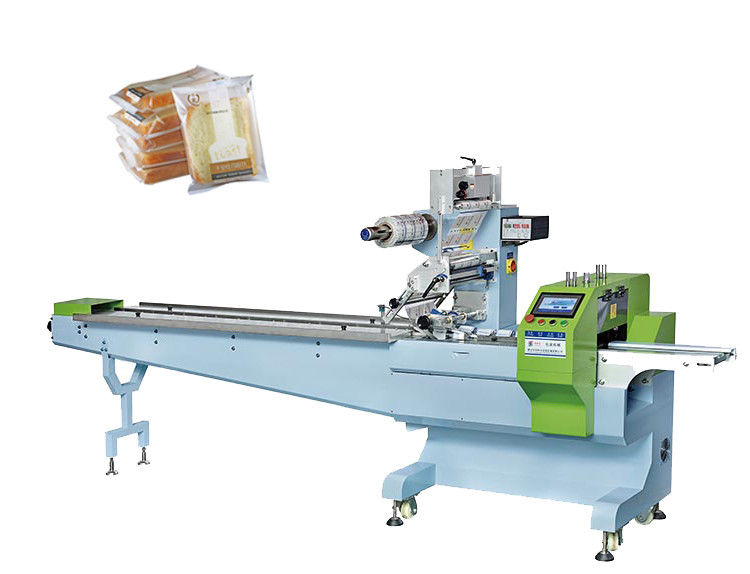

SUS304 Servo Pillow Packing Machine Automatic Pouch 150mm
  • SUS304 Servo Pillow Packing Machine Automatic Pouch 150mm

SUS304 Servo Pillow Packing Machine Automatic Pouch 150mm

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number KD-260
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
High Light:

SUS304 Servo Pillow Packing Machine

,

150mm Pillow Packing Machine

,

SUS304 automatic pouch packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

Standard features:
3 independent motors (Conveyor, center sealing and end sealing)
Motion controller for quick response to various commands
Accurate positioning
Digital temperature control
Food grade SUS304 contact parts
Brush extrude air from bag
Touch screen




Special features:
All control in one touch screen, user-friendly and easy operation
Empty bag prevention, no product no bag
Product cutting prevention, machine will stop once cutter cuts the product
Memory function, can store 99 groups of package parameters (product position, packing speed, bag length)
No limit for product length



Technical Parameters
Max.Film width
260mm
Max capacity of packing
20-120 pcs/ min
Film thickness
Film thickness
Bag Length
60-300 ( Do not exceed this size )
Packing width
25-150mm
Packing Height
≤80mm
Power Supply
220V 2.4 kW
Overall dimensions(L*W*H)
2600*750*4500mm
Total Weight
680kg



Product Application

It is used in automatic bag making of various mask,melons and fruits. The production line can be connected before and after. Such as: lemon,

orange, bell pepper, banana, peach, mangosteen, lotus, apricot, fig, apple, cucumber, etc.

Option function:Plastic bag punching, print production date, automatic weighing and printing labels, automatic labeling, etc

Packaging material requirement :Printed or unprinted roll film
