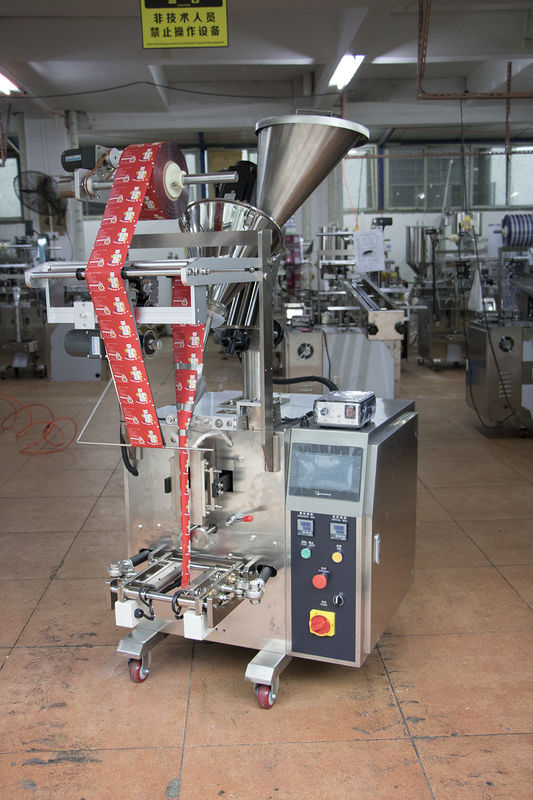

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine
  • Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine
  • Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine
  • Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine
  • Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number DXD-Series
Product Details
Machine:
Pillow Packaging Machine
Max.Film Width:
260mm
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
25-150mm
High Light:

150mm small tea packing machine

,

50g small tea packing machine

,

50g automatic sachet filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description



POWDER PACKAGING MACHINE
Apply for the packaging of Herbal powder, Chemical powder,Nutrition powder,food powder such as milk powder,coffee powder,protein powder,cocoa powder,spices powder.



Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 0





Application


It's suitable for automatic packing of various kinds of grain such as candy, confection, chocolate bean, peanuts, bean, tea, spice, rice, snack, seeds, small toys etc

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 1



Technical Feature


1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.

2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

3. Step motor control the film moving smoothly, easy and accurate to set the bag length.

4. The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.

5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.

6. Machine makes pillow bag, Punching bag, linked bag.

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 2





Technical Parameters

Items / Model
DXD-350K
DXD-500K
DXD-900K
Pouch length
50-250mm(L) (adjustable)
50~160mm
50~120mm( Pouch length can change)
Pouch width
50-85mm(W)
50~105mm
50~105mm
Packing speed
30-50times/min depend on pouch size and material
20~50times/nim(depend on pouch size and material)
80times/nim(depend on pouch size & material)
Measuring range
1-50ml
1~80ml
1~80ml
Applicable film
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll
350mm
500mm
900mm
Max film roll diameter
300mm
420mm
Φ300mm
Film roll core diameter
75mm
75mm
Φ75mm
Power voltage
220V/ 50HZ(do as customer’s request)
380V50Hz 3P 4W
380V 50Hz (do as customer's request)
Power
5.5kw
12 Kw
12 Kw
Gross Weight
650kg
1200kg
1200kg
Package size
(L)1400mm×(W)1000mm×(H)1700mm
1680x1280x2050mm
1500x1540x2200mm(L x W x H)



Working process

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 3

1. Turn on the machine waiting the temperature to setting numerical vaule, and set the parameter on the touch screen.


2.Put the material to the hopper.



Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 4



3.Set the Packaging film to packing machine and test the packing machine working.


4.Automatic auger measuring material and auto bagging

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine 5

5.Bag former auto bag making, the bag automatic sealing.

6.After bag sealing,finished product will auto cutting by cutting device, finished product put out.
