GLG Premade Bag Packing Machine
Product Details:
| Place of Origin: | Zhejiang Province,China |
| Brand Name: | LTPM CHINA |
| Certification: | CE, GMP, SGS, BV |
| Model Number: | LTWP-Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Wooden Case |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 45 sets/month |
|
Detail Information |
|||
| Working Position: | Eight-working Position | Driven Type: | Electric |
|---|---|---|---|
| Filling Scope: | 10-5000g（ The Screw Attachment Is To Be Changed） | Speed: | 10-45pouches/min（The Speed Depends On The Product Status And Flling Weight）） |
| Place Of Origin: | Zhejiang, China | ||
| High Light: | GLG Premade Bag Packing Machine,BV Premade Bag Packing Machine,GLG automatic grain packing machine |
||
Product Description

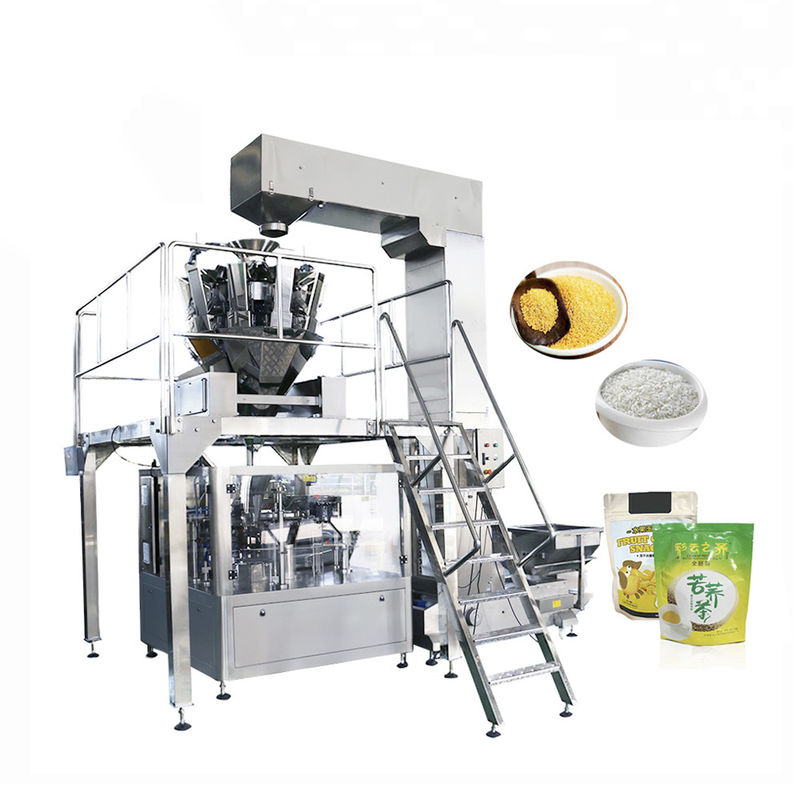

GLG Rotary Solid Granule Food Premade Bag Automatic Doypack Pouch Packing Machine
Product Details:
Main Features:
1.Easy to operate, adopt advanced PLC controller, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal.
3.The machine could be protected well when it stops with parking brake function.
4, Low consumption of the packing material. The machine is advanced with perfect sealing and leaving complete prints with pre-made bags.
5.The measuring machine could be added based on the packing material(such as automatic screw filling machine, intelligent combined weigher, liquid filling machine).
6. It conform to hygienic standards of food processing industry. The contact parts are made of stainless steel or other materials which suits the hygienic standards to ensure the hygienic security.
7. It is suitable for a broad range packing materials, suit for multi-lay compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Application:
This machine is suitable for food chemical, pharmaceutical to automatic pack granules like sweets, beans, peanuts, seeds, grain, biscuits, nuts, tea, dumplings, gourmet, coffee, sugar, fastener and so on.
Technical Parameters:
| Model | DXD200 | DXD300 |
| Working position | six-working position | six-working position |
| Pouch pattern | Stand-up pouches, handbags, zipper bag, rounded edges sealed bags, 3-side seal bags, paper bags | |
| Pouch material | Laminated film, PE, PP etc. | |
| Pouch size | W:100-210mmL:100-350mn | W: 200-300mm L:200-450mm |
| Weight | 1000kg | 1000kg |
| Filling range | 5-1500g | 100-2000g |
| Packing speed | ≤40 Bags/min (The speed depends on the product status and filling weight) | |
| Total power | 3.0kw | 3.2kw |
| Overall size | L:1650×W:1380×H:1500mm | L:2200×W:1850×H:1500mm |
| Compressed air consumption | 0.4 m³/min (compress air is supplied by user) | |
