50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml
  • 50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml
  • 50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml
  • 50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml

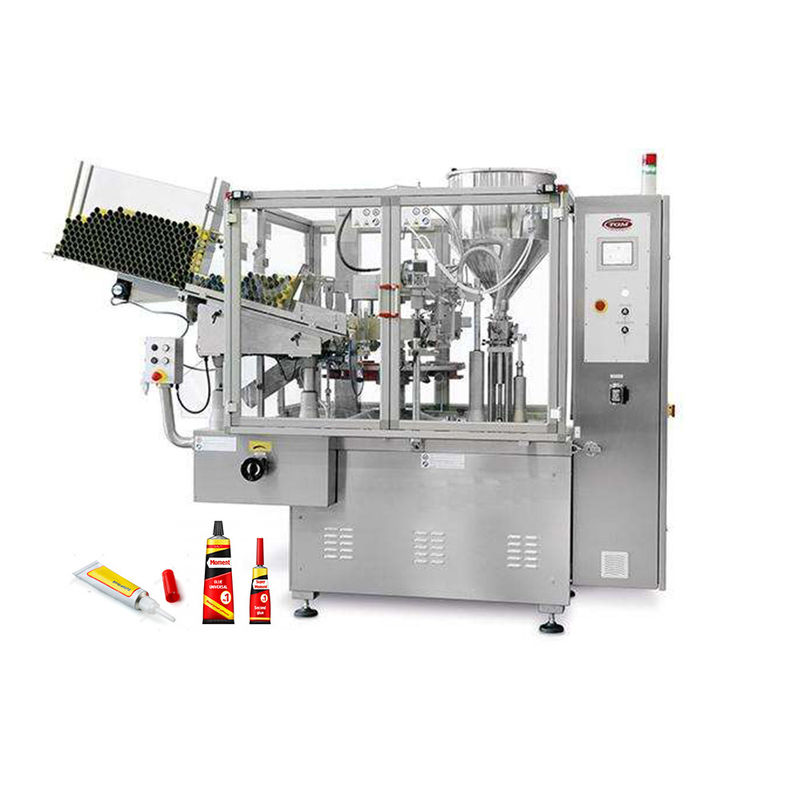

50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTRG-60A
Product Details
Model:
LTRG-60A
Tube Material:
Aluminum Tube
Tube Diameter:
Dia.5mm-50mm
Tube Length:
50-240mm (customizable)
Filling Volume:
5-250ml/piece (Adjustable)
Filling Accuracy:
≤±1%
High Light:

50mm liquid filling sealing machine

,

180ml liquid filling sealing machine

,

180ml juice filling and sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

The tube filling and sealing machine used for plastic tube, soft tube. which is filling and sealing. filling volume is 5-200ml, the sealing place use "LESITER" ( Switzerland) hot air system to heating the tube, and the sealing is beautiful. the control place use PLC+touch screen(SIEMENS). other electrical parts use Schneider. these famous brand parts will ensure the good quality of the machine.
Tube filling and sealing machine use for filling cream, ointment, paste, lotion, gel, glue, paint and others
The tube filling and sealing mchine main used for Cosmetics industry, light industry (household chemical industry ), pharmaceutical industry, food industry and etc.
It's suitable for the products that use hoses as the packing containers. It can fill ointment, cream, gel, high viscous flow and etc. into the hoses, seal the tail of the hoses by pressing in the hot-melting condition, print letter codes, and prune and train the tail of hoses, at last discharge the finished product.





Feature:
This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for plastic tube, laminated tubes, It is a multi-purpose machine.
Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
Double-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.





Main technical parameters
Model
LTRG-100
Production Speed
70-95 pcs/min
Filling Quantity
3-180 ml
Dosage Precision
≤±1℅
Tube Diameters Sealed
ф12-ф35mm
Power Supply
380V/50Hz 1.5KW
Air Consume
<0.6m3/min
Dimensions(L×W×H)
2450×1200×2100 mm
Weight(kg)
1500kg





Application range of the machine:
The machine is used for cosmetics industry, light industry (daily-use chemical industry), pharmaceutical industry, food industry and other industries. The machine is suitable for products which choose tubes as packaging containers. The equipment fills such materials as ointments, creams, gels or fluids with high viscosity into the tube, then folds and seals the tail of the tube, and prints the word code on the tube to produce the finished product.



50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml 0

50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml 1





Machine Details

50mm Liquid Filling Sealing Machine Juice Aluminum Tube 180ml 2
