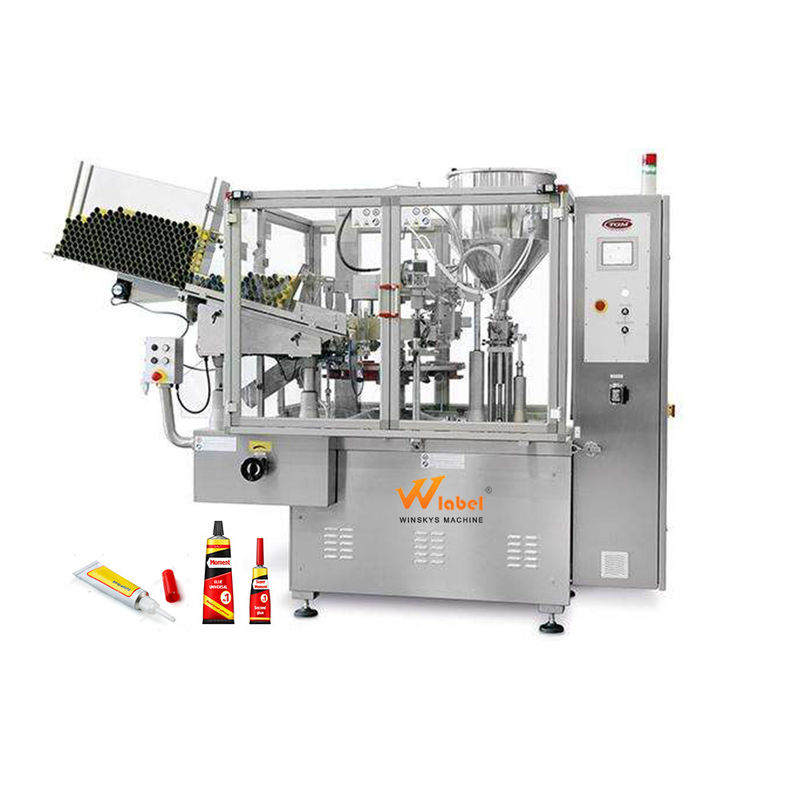

Automatic Tube Filling and Sealing Machine is suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic and laminated tubes and then internally heating tubes, sealing and printing lot number or production date. It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals.
With touch screen and PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected of compact design and auto tube feed. Driving part is fully-closed. Full steps of tube feeding, marking identification, filling, hot air sealing, code printing, trimming and ejecting out the tube are conducted by automatic system. Tube feeding is conducted pneumatically, accurately and reliably.
Features
1,Automatic control system by PLC and touch screen. The electrics brand is customized.
2,intelligent temp control and cooling system makes sealing more reliable
3,With easy and quick adjustment, multiple kinds of tubes can be filled on one machine
4,Original Swiss LEISTER heater is adopted to get more steady and reliable sealing
5,The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to GMP standard
6,With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed.
7,The production capacity can be realized and control automatically, normal speed is 40~60pcs/min
8,Human-machine interface with direct display and control.
9,Automatic detection of tube direction inversion., SICK inversion detection photo sensor can accurately detect the inverted tube.
10,No tube no fill, preventing a waste of the materials
11,The machine can stop automatically when the production is completed by the setting quantity
12,All parts of filling are assembled by quick couplers, which makes it convenient to clean and sterilization.
13,The machine is stepless frequency conversion timing system. The filling speed can be set easily
14. The air blow system is installed at the filling nozzle, cutting the material and no drop
15. The mechanical parts are of famous brand with lubricants maintenance, no noise or pollution.
16. High quality cam is applied for indexing
17.The machine is designed to connect the automatic material feeding system with the emulsifying machine or mixing machine conveniently Overload Protection Provided
18. Overload Protection Provided
19,High-viscous material will have automatic temperature control and blending system.(optional)
20,Nitrogen Injection Function (optional)
21,Material feeding pump. (optional)
22,Water cooler(chiller). (optional)
|
Main technical parameters
|
|
Model
|
LTRG-100
|
|
Production Speed
|
70-95 pcs/min
|
|
Filling Quantity
|
3-180 ml
|
|
Dosage Precision
|
≤±1℅
|
|
Tube Diameters Sealed
|
ф12-ф35mm
|
|
Power Supply
|
380V/50Hz 1.5KW
|
|
Air Consume
|
<0.6m3/min
|
|
Dimensions(L×W×H)
|
2450×1200×2100 mm
|
|
Weight(kg)
|
1500kg
|
Machine samples
Packing Details : Export Standard Wooden Box.
Delivery Details : 30 days after 30% deposite.
We suggest you choose forwarder to save shipping fee.
Please contact us for shipping information.
Please confirm you have ability for import this machines,usually US country needs DEA number.
