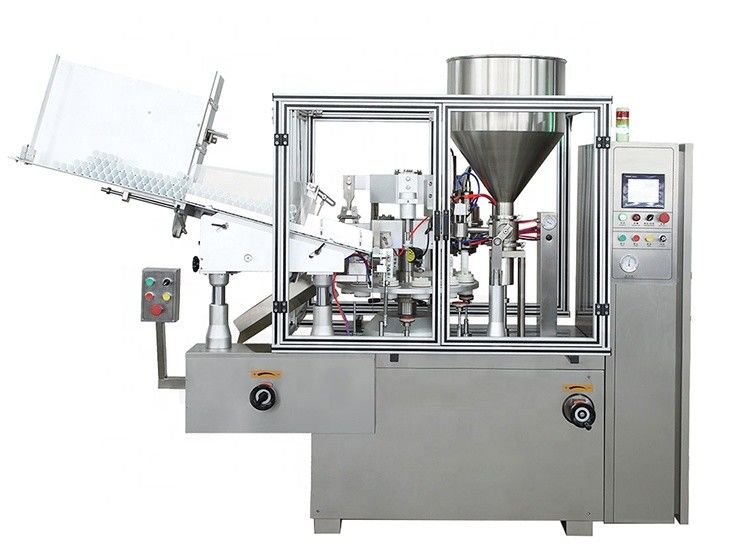

LTRG Automatically Tube Filling Machine Sealing 350ml
  • LTRG Automatically Tube Filling Machine Sealing 350ml

LTRG Automatically Tube Filling Machine Sealing 350ml

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTRG-60
Product Details
Model:
LTRG-60
Tube Material:
Aluminum Tube
Filling Speed:
30-80 Pcs/min
Tube Length:
50-240mm (customizable)
Filling Volume:
3-350ml
Production Speed:
70-95 Pcs/min
High Light:

LTRG Tube Filling Machine

,

350ml Tube Filling Machine

,

350ml tube filling sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

LTRG Tube Filling Machine Sealing 350ml



The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.
If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.





Features:



1.High grade operation screen with LCD display PLC and buttons, easy operation and more humanization.

2.Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.

3. High precision photoelectron register reduced the chromatic aberration scope.

4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).

5.Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.



Technical Parameter

Model
LTRG-Series
Filling range
3-300(ml)( can be customized)
Filling speed
40-60(pics/min)
Gas source(Mpa)
0.55-0.65
Filling accuracy
≤±0.05%
Tube diameter(mm)
Φ10- Φ32(can be customized)
Tube Length(mm)
45-250(can be customized)
Supply Power
380v/220v
Head
1
Power
2kw
Net weight
800kg



LTRG Automatically Tube Filling Machine Sealing 350ml 0LTRG Automatically Tube Filling Machine Sealing 350ml 1
