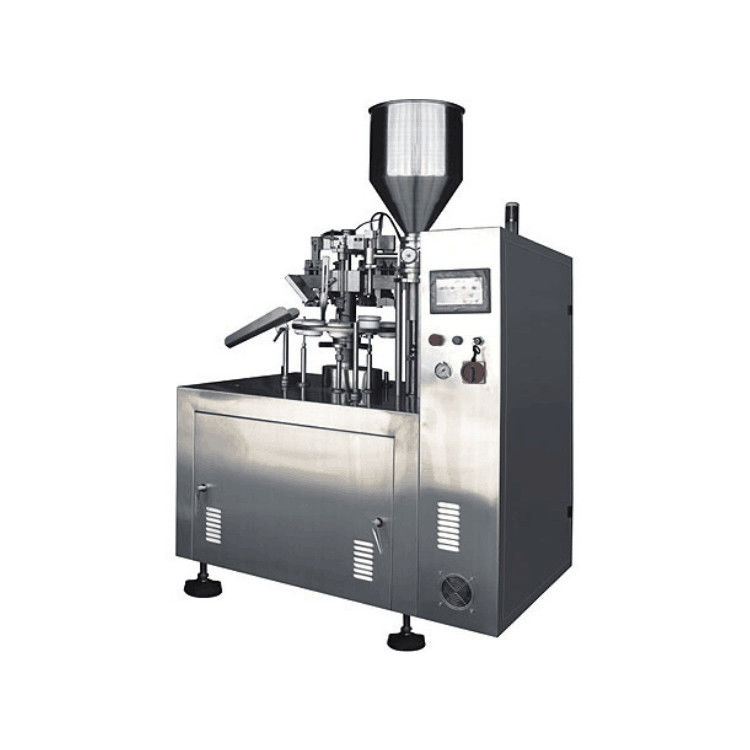

Glue grease silicon chocolate small cosmetic automatic toothpaste plastic and sealing tube filling machine
Introduction
A semi-auto soft tube filling and sealing machine is mainly used for plastic tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc.
This LTPM CHINA MACHINE is a 2 heating heads sealing filling machine. It has 8 positions for filling and sealing. Materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.
Application
The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.
Machine Features
1. Compact Design for Minimum Floor Space
2. Heavy Duty Stainless Steel Frame Construction
3. Intelligent Temperature Control and Cooling Systems
4. Convenient and Swift Adjustment of filling volume via Hand Wheel
5. Control pane Touch&screen with all the main functions
6. Automatic tube loading from the tube magazine (Optional)
7. Automatic tube orientation (Optional)
8. Diving nozzle for an accurate dosage of the bottom of the tube
9. Mechanical jaw closing system for aluminium tubes, with simple or double fold
10. Hot jaws for politene, laminated and polyfoil tubes
11. Hot air sealing system for politene, laminated and polyfoil tubes
12. Axomatic machine can work up to 45mm plastic tubes
Main technical parameters
|
|
Model
|
LTRG-100
|
Production Speed
|
70-95 pcs/min
|
Filling Quantity
|
3-180 ml
|
Dosage Precision
|
≤±1℅
|
Tube Diameters Sealed
|
ф12-ф35mm
|
Power Supply
|
380V/50Hz 1.5KW
|
Air Consume
|
<0.6m3/min
|
Dimensions(L×W×H)
|
2450×1200×2100 mm
|
Weight(kg)
|
1500kg
|
