Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical
  • Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical

Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTRG-100
Product Details
Model:
LTRG-100
Tube Material:
Aluminum Tube
Filling Speed:
30-80 Pcs/min
Tube Length:
50-240mm (customizable)
Filling Volume:
3-350 Ml
Production Speed:
70-95 Pcs/min
High Light:

180ml Tube Filling Machine

,

240mm Tube Filling Machine

,

tube packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

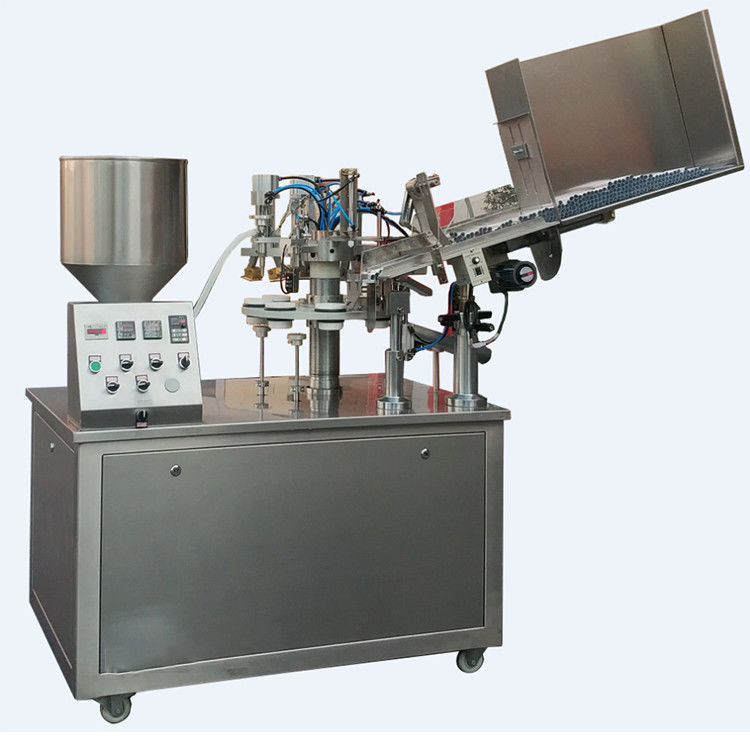

Automatic Soft Plastic 240mm Tube Filling Machine 180ml



Automatic Tube Filling and sealing Machine is mechanical-electrical integration, used multiple introduction technology and controlled by PLC, it can complete tube feeding, photocell recognition, filling, sealing, date printing and tube injection automatically simultaneously. The machine runs smoothly, easy to control and size change over, suitable for producing paste products.

The machine has a modern shape, a strong practicability and good value for process, it is widely used in toothpaste, ointment, paste food, cosmetics, hair-dyeing, adhesive, art palette and so on.





Automatic put the tube into the tube holders.

color electric eye, Correct the tube position,high accuracy and stable.

Made of SS304. Also can be customized as SS316L. It anti drop system. Have end cap inside of filling nozzle, and also have air blow after filling to cut down the tail of products.

Inner heating,Heat wind and water cooling are achieved by heaters(LEISTER) and water coolers.

Can be print A-Z or 0-9, depend on your requirements. And change easy.

Plastic/soft tube inner heating sealing, aluminum tube folding. The printing characters can be required sealing line also.





Main technical parameters
Model
LTRG-100
Production Speed
70-95 pcs/min
Filling Quantity
3-180 ml
Dosage Precision
≤±1℅
Tube Diameters Sealed
ф12-ф35mm
Power Supply
380V/50Hz 1.5KW
Air Consume
<0.6m3/min
Dimensions(L×W×H)
2450×1200×2100 mm
Weight(kg)
1500kg





Detailed Images
Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 0Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 1Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 2Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 3Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 4Automatic Soft Plastic 240mm Tube Filling Machine 180ml Electrical 5
