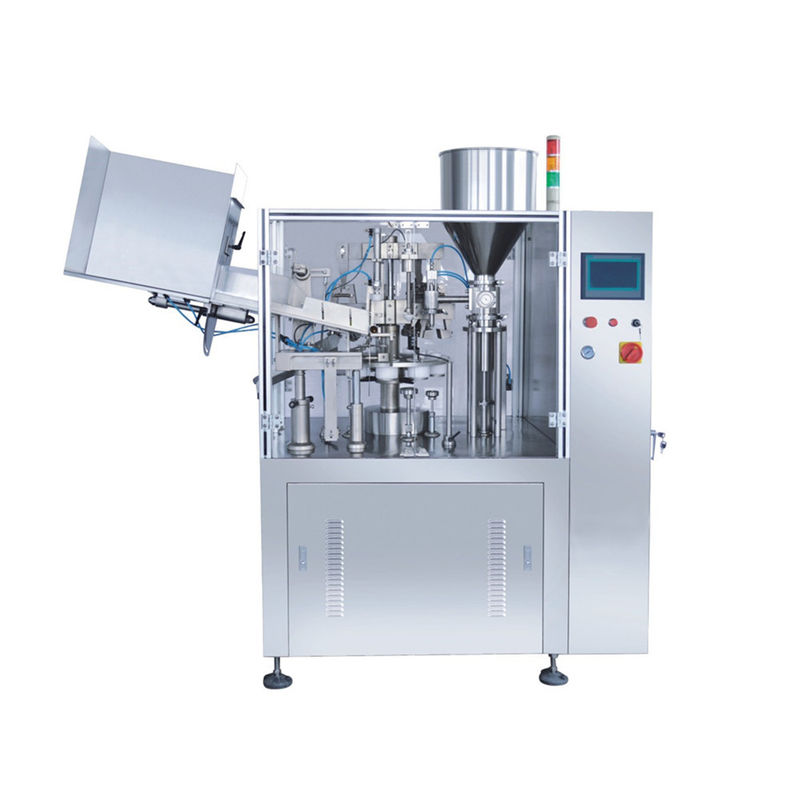

LTRG 60A Tube Filling Machine Automatic Capsule 180ml
  • LTRG 60A Tube Filling Machine Automatic Capsule 180ml
  • LTRG 60A Tube Filling Machine Automatic Capsule 180ml

LTRG 60A Tube Filling Machine Automatic Capsule 180ml

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTRG-60A
Product Details
Model:
LTRG-60A
Tube Material:
Aluminum Tube
Tube Diameter:
Dia.5mm-50mm
Tube Length:
50-240mm (customizable)
Filling Volume:
5-250ml/piece (Adjustable)
Filling Accuracy:
≤±1%
High Light:

LTRG 60A Tube Filling Machine

,

180ml Tube Filling Machine

,

180ml automatic capsule filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description
Application:


The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.

Characteristics:



1. High grade liquid crystal display programming controller and button combination operation screen, a comprehensive grasp of stepless speed, parameters of the equipment and production count statistics, pneumatic equipment instructions, fault display operation status, the operation is simple and user-friendly.

2. Feed tube ,photocel,inert body temperature (optional), filling, sealing, printing, finished the whole products automatic.

3.High accuracy photocel system , to reduce the mistake sealing of tube body color .

4. adjusting the position of the external, digital display, adjust fast and accurate (applicable to multi specification, multi
variety production).
5. machine, light, electricity, gas integration, no tube no filling, for the pipe is not in place, low pressure, automatic display
(alarm); open the protective door can automatically shut down, such as automatic functions.

6.Having nine stations, full function, convenient for variety, metal pipe, plastic pipe, composite pipe mould can be

interchangeable, suitable for any folding metal tube.



Main technical parameters
Model
LTRG-100
Production Speed
70-95 pcs/min
Filling Quantity
3-180 ml
Dosage Precision
≤±1℅
Tube Diameters Sealed
ф12-ф35mm
Power Supply
380V/50Hz 1.5KW
Air Consume
<0.6m3/min
Dimensions(L×W×H)
2450×1200×2100 mm
Weight(kg)
1500kg
Detailed Images
LTRG 60A Tube Filling Machine Automatic Capsule 180ml 0LTRG 60A Tube Filling Machine Automatic Capsule 180ml 1LTRG 60A Tube Filling Machine Automatic Capsule 180ml 2LTRG 60A Tube Filling Machine Automatic Capsule 180ml 3LTRG 60A Tube Filling Machine Automatic Capsule 180ml 4LTRG 60A Tube Filling Machine Automatic Capsule 180ml 5
