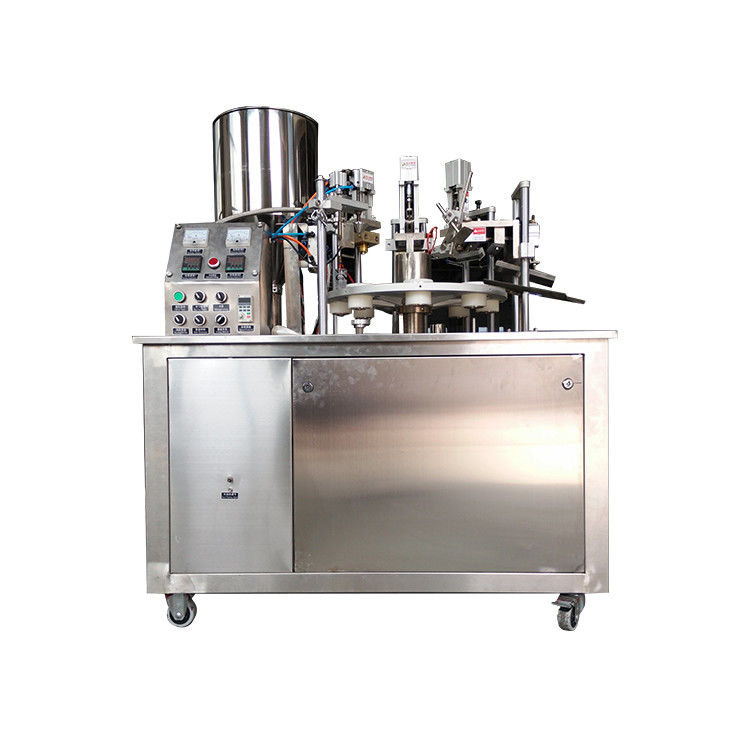

Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine
  • Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine

Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTRG-60
Product Details
Model:
LTRG-60
Weight:
1100kg
Power:
4kw (380V/220V 50Hz)
Overall Dimension(mm):
1600*1640*1900mm (L*W*H)
Air Supply:
0.55-0.65Mpa
Product Capacity (Pcs/min):
30-50 0.1m3/min
High Light:

0.65Mpa aluminium tube sealing machine

,

4kw aluminium tube sealing machine

,

4kw toothpaste filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

Introduction and function

This machine applies the transmission principle. It uses the slot wheel dividing system to drive the turntable to do intermittent movement. The machine has 8 sits. Expect manually putting the tubes on the machine, it can automatically fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and cut the tails and exit the finished tubes. Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and work without any noise and pollution.

The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.

If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.





Main functions:



1. automatic tube orientation

2. automatic heating

3. automatic sealing and pressing the batch, dates

4. automatic cutting the tail

5. automatic exiting



Application range:



It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, adhesive and shoe polish, food industries.



Characteristics

1. the material contact parts are made of stainless steel SUS316;

2. the connection of the various is used the quick-change device, which is easy to disassemble and clean;

3. high-quality pneumatic components



Technical parameters:



Model LTRG-60
Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Power 4kw (380V/220V 50Hz)
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg)

1100kg

Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine 0Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine 1Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine 2Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine 3Cosmetic 0.65Mpa Aluminium Tube Sealing Machine 4kw Toothpaste Filling Machine 4
