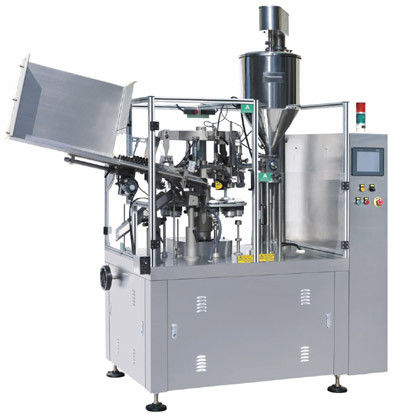

Intelligent Automatic Tube Filling And Sealing Machine For Soft Plastic Tube
  • Intelligent Automatic Tube Filling And Sealing Machine For Soft Plastic Tube

Intelligent Automatic Tube Filling And Sealing Machine For Soft Plastic Tube

Place of Origin China
Brand Name LTPM China
Certification CE
Model Number LTRG-50
Product Details
Filling Quantity:
10-75ml, 20-150ml
Work Temp:
5~50℃
Capacity:
10-50 Tube/min
Dimension:
1000mm*600mm*1700mm
Tube Material:
Plastic, Laminated
Tube Holding:
16 Tubes
High Light:

tube filling and sealing machine

,

tube filling sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
15Set/Month
Product Description

Intelligent Automatic Tube Filling And Sealing Machine For Soft Plastic Tube







Description:





The control parts of the machine are composed of intelligent man-computer interface, large touch screen display and operation control panel, functions including temperature setting, motor speed setting, filling speed setting, direct screen display, screen display and screen control. The components of the machine which will contact with the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied along with the machine. The machine is featured with safety switch, auto-stop, soft tube location, photoelectric sealing control, etc. During the process of hose-feeding and setting, filling and sealing, the ejectings are all automatically controlled. Digital count device is installed at the front part of the machine. During the filing process, the filling head is placed inside of the material, and the blow-off device is installed to ensure a complete sealing. Various sealing types are available to meet different needs.







Applications:





This machine is mainly used to fill the material into metal tubes with fixed quantity and then seal the tube. It is widely used for the packing of chemicals, cosmetics, foods and pharmaceuticals, such as ointment, AB glues, super glues, epoxy adhesives, skin creams, hair dye, shoeshine, toothpaste and other liquid and sticky materials. Manually put the metal tube (max:16 tubes) into the tube-holding base. With the help of automatic mechanical transmission, automatic detection can confirm the tubing process and filling process. The final step is to seal the tube.





Specifications:





Power Supply AC 220V±10% 50HZ
Work Temp 5~50℃
Filling Quantity 10-75ml, 20-150ml
Motor Power 0.75~1.1kw
Compressed Air Pressure 0.6~0.7Mpa
Compressed Air Volume 0.2m3/min
Capacity 10~50 tube/min (adjustable)
Dimension 1000mm*600mm*1700mm
Weight 400kg




Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
