Tube Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE |
| Model Number | LTRG-60A |

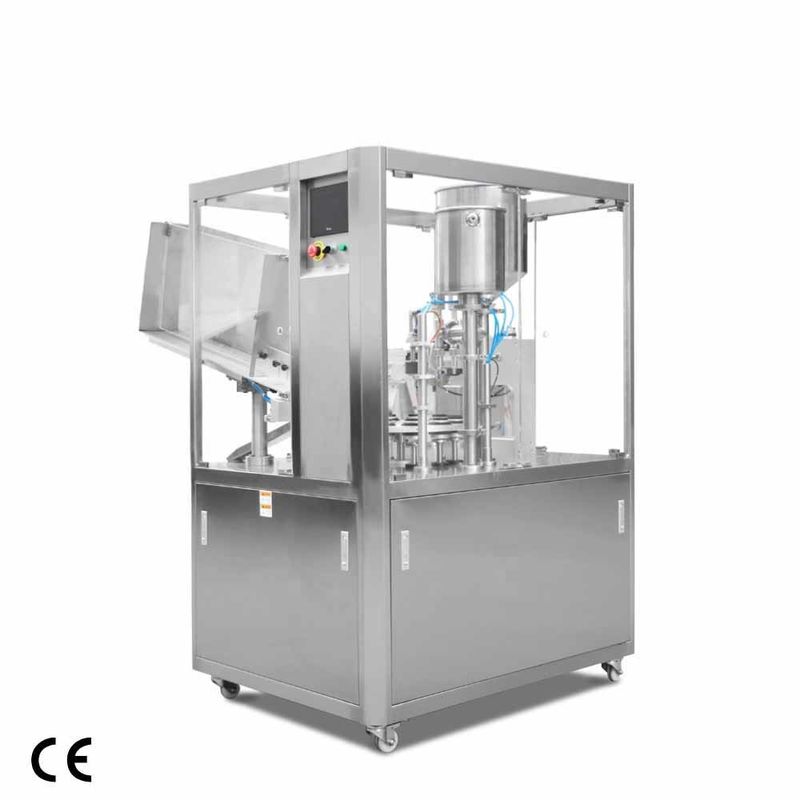

The machine is compact and versatile. With small occupation less then 1 cbm, it's capable to do the whole process from tube loading, orientation,filling,sealing,triming to final output.
It has been widely applied in cosmetic, chemistry and food industries.
Ultrasonic welding can be applied to almost all plastic material, as it creates heat by way of friction between the materials to be joined.
Features
1)Automatic tube lowad system with bulk hopper
2) Satinless steel construction components
3) Operator safety door system with interlocks and sensor
4)No tube ,no fill sensor
Specifications:
| Tube Material | Plastic tube, laminated tube |
| Tube Diameter | Φ5mm-Φ60mm |
| Tube Length | 50-300mm (customizable) |
| Filling Volume | 5-250ml/piece (Adjustable) |
| Filling Accuracy | ≤±1% |
| Product Capacity (Pcs/min) | 30-50 0.1m3/min |
| Air Supply | 0.55-0.65Mpa |
| Motor Power | 4kw (380V/220V 50Hz) |
| Heat Sealing Power | 5kw |
| Overall Dimension(mm) | 1600*1640*1900mm (L*W*H) |
| Machine Weight (kg) | 1100kg |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
