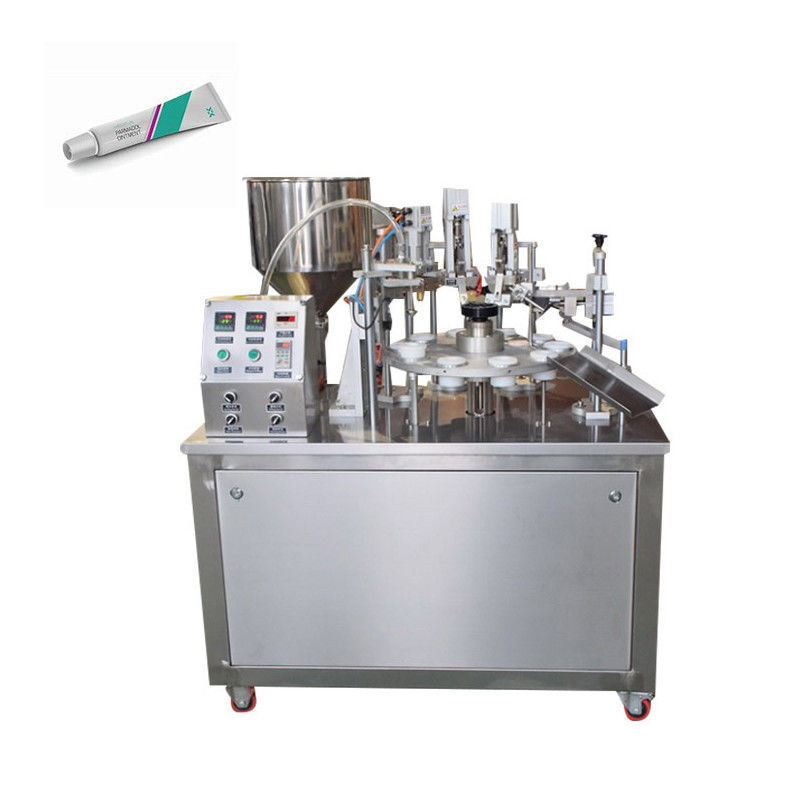

1.2KW Tube Filling Sealing Machine Aluminum SS316L
  • 1.2KW Tube Filling Sealing Machine Aluminum SS316L

1.2KW Tube Filling Sealing Machine Aluminum SS316L

Place of Origin China
Brand Name LTPM China
Certification CE
Model Number LTRG-30P
Product Details
Application:
Beverage, Chemical, Food, MEDICAL
Packaging Material:
Plastic, Metal, Aluminium & Plastic Tubes
Driven Type:
Electric
Warranty:
5 Years
Power Input:
4.2 KW, 3 Phase, 440 V Input
Outsource:
Air Compressor Max 6 Kg Air Pressure
Condition:
New
Automatic Grade:
Automatic
High Light:

1.2KW tube filling sealing machine

,

SS316L tube filling sealing machine

,

SS316L aluminum tube sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
15Set/Month
Product Description

Introduction and function



This machine applies the transmission principle. It uses the slot wheel dividing system to drive the conveyor table to do intermittent movement. The machine has 8 or 10 tube stations. Expect manually feeding the tubes onto the machine, it can automatically position the tubes, fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and trim the tails and the finished tubes exit.

Filling measurement is accurate by the pistol plunger. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and has no any noise and pollution during production.

The part which is contact with the filling material is made of high-quality stainless steels 304 or SS316L. The parts which need to clean are made of quick-change device that is removable and convenient for washing.

If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.





Application range



It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, lubricants, adhesive and shoe polish, food industries.





Characteristics



1. The material contact parts are made of stainless steel SUS304 and SUS316 is optional .

2. The connection of the various is used the quick-change device, which is easy to disassemble and clean;

3. high-quality pneumatic components

4. The height of conveyor table can be adjusted easily by a hand wheel for different tubes

5. Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.

6. The filling speed can be adjusted freely a VFD

7. Production counter could be displayed on the control cabinet

8. Inner heating and out heating technology, a stable and good looking sealing is got.





Main technical parameters:



1. Power: ~220V±10%, Customized

2. Rate: 1.2KW

3. Filling volume: 5~50ml;50ml~250ml

4. Tube diameter: Φ13~Φ50mm

5. Producing speed: 20-30 pcs /min

6. Filling accuracy: ±1%

7. Machine dimension: 1200*850*1450mm

8. Machine weight: 320kg

9. Working air pressure: >0.4Mpa





Specifications:



Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 30-50 0.1m3/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg) 1100kg


1.2KW Tube Filling Sealing Machine Aluminum SS316L 01.2KW Tube Filling Sealing Machine Aluminum SS316L 11.2KW Tube Filling Sealing Machine Aluminum SS316L 21.2KW Tube Filling Sealing Machine Aluminum SS316L 31.2KW Tube Filling Sealing Machine Aluminum SS316L 41.2KW Tube Filling Sealing Machine Aluminum SS316L 51.2KW Tube Filling Sealing Machine Aluminum SS316L 6

Competitive Advantage:

1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
