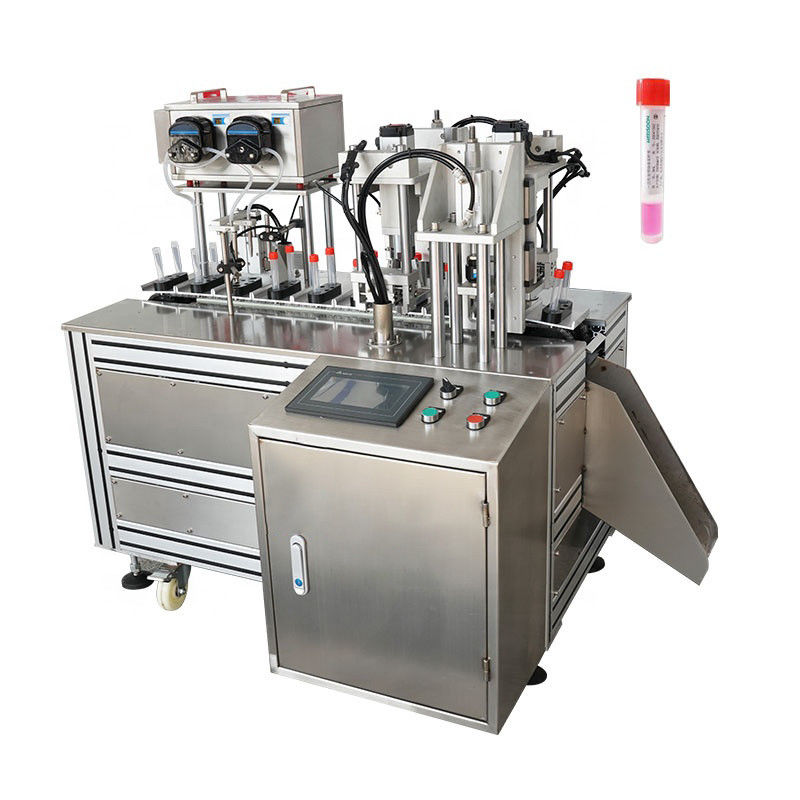

The diagnostic reagent filling machine is suitable for liquid filling and sealing of caps. It is mainly used for quantitative packaging and automatic sealing equipment for diagnostic reagents, liquid sampling tubes and other tubular containers. The transmission and capping mechanism is driven by a servo motor, which makes the filling and capping more stable and reliable. Double-head filling and double-lid sealing greatly improve production efficiency. The structure is compact, the floor space is small, and the movement is convenient. Place the container manually.
The diagnostic reagent filling and capping machine is our company's traditional filling and capping equipment series, which is suitable for filling and capping various round, hand-washing gel liquid filling machines and special-shaped bottles and small bottles. It is mainly suitable for filling various diagnostic reagents, 10ml eye drop filling machine injections, disinfectants, oral liquids and syrups, wine, essential oils and various medical liquids.
Specifications:
Tube Material | Plastic tube, laminated tube |
Tube Diameter | Φ5mm-Φ60mm |
Tube Length | 50-300mm (customizable) |
Filling Volume | 5-250ml/piece (Adjustable) |
Filling Accuracy | ≤±1% |
Product Capacity (Pcs/min) | 30-50 0.1m3/min |
Air Supply | 0.55-0.65Mpa |
Motor Power | 4kw (380V/220V 50Hz) |
Heat Sealing Power | 5kw |
Overall Dimension(mm) | 1600*1640*1900mm (L*W*H) |
Machine Weight (kg) | 1100kg |
