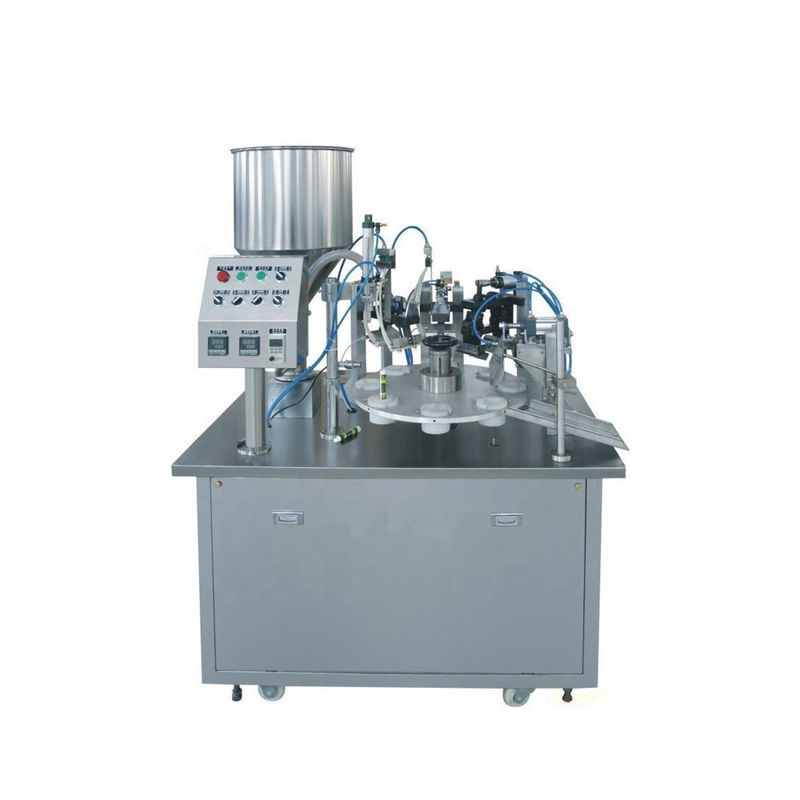

Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min
  • Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min
  • Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min

Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min

Place of Origin China
Brand Name LTPM China
Certification CE
Model Number LTRG-60A
Product Details
Application:
MEDICAL
Packaging Material:
Plastic
Driven Type:
Pneumatic
Dimension(L*W*H):
Client Needs
Certification:
CE GMP ISO
Warranty:
5 Years
Packaging Type:
Tube
Voltage:
220V/380V
High Light:

5ml Tube Filling Machine

,

0.1m3 min Tube Filling Machine

,

5ml aluminum tube sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
15Set/Month
Product Description

Description:



Innovate's tube filling& sealing machine uses composite hose and plastic hose as container, with hot air heating and sealing. All the process is controlled by PLC and displayed by touch screen.
Tube direction positioning, photoelectric servo motor control;
16 station automatic rotary, filling fast, accurate measurement;
Digital high-speed filling volume regulator, easy to adjust measurement;
Imported hot air within the heating device, sealed tail aesthetic and firm;
Optional according to different materials: hooper heating system, anti-drawing filling heads.
Automatic machine: automatic tubing-automatic benchmarking-measurement filling-heat sealing-batch printing-tail mute-tube out





Specifications:



Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 30-50 0.1m3/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg) 1100kg


Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min 0Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min 1Automatic 5ml Tube Filling Machine Aluminum Tube Sealing Machine 0.1m3 Min 2

Competitive Advantage:

1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
