Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine
  • Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine
  • Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine
  • Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine

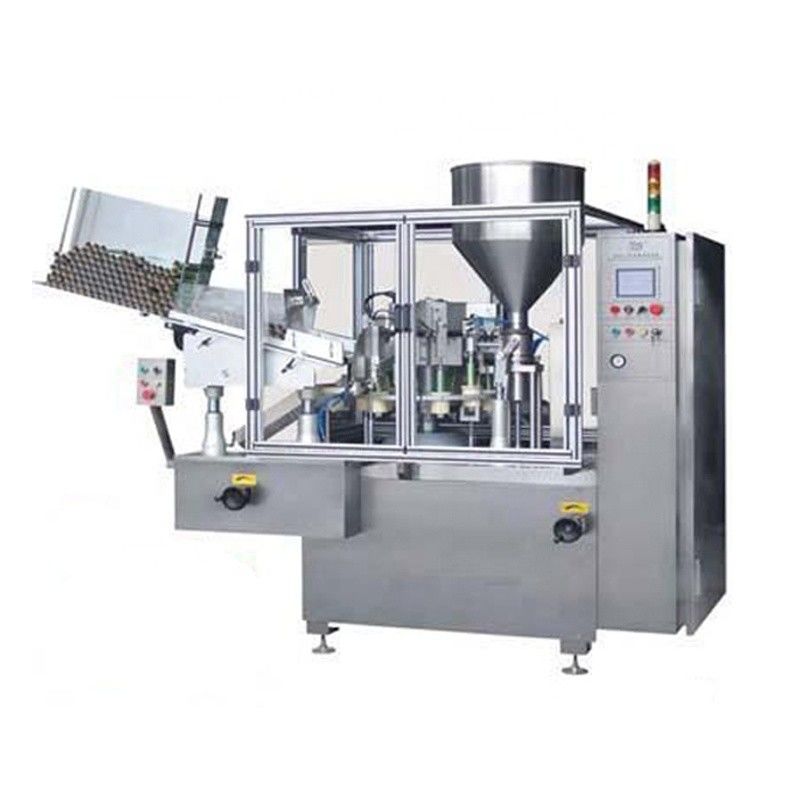

Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine

Place of Origin China
Brand Name LTPM China
Certification CE
Model Number LTRG-60P
Product Details
Application:
MEDICAL
Packaging Material:
Plastic
Driven Type:
Electric
Place Of Origin:
Zhejiang, China
Dimension(L*W*H):
2620*1020*1980mm
Certification:
CE,ISO9001
Warranty:
5 Years
Packaging Type:
Tube
High Light:

300mm Tube Filling Machine

,

250ml Pharmacy Tube Filling Machine

,

250ml aluminium tube sealing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
15Set/Month
Product Description

This model machine adopts 12station design. Suitable for all kinds of folding Packing for metal tube. can easily realize the plastic tube and the metal tube

Packing by replacing the moulds and parts. It is an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy,foodstuff, adhesives etc industries, and it complies with the standard of GMP.





Technical characters:



1. High grade operation screen with LCD display and PLC control, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.

2. Automatically executing tube supply,photocell register, inert gas filling (optiona1), material filling and sealing, batch number printing, final products output.

3. High prevision photocell register, that reduces the chromatic aberration scope.

4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variable products producing).

5. Mechanical, photoecectrical, electric, pneumatic integrative controlling, reaches no tube no filing function: warning if tube error positioned or pressure too 10w, it will automatic stop while open the protective door.





Specifications:

Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 30-50 0.1m3/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg) 1100kg


Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine 0Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine 1Auto 300mm Tube Filling Machine 250ml Aluminium Tube Sealing Machine 2

Competitive Advantage:

1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
