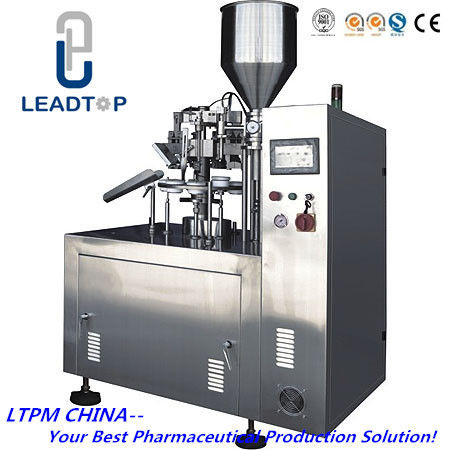

Semi Automatic Tube Filling Sealing Machine For Aluminum Tube

Semi Automatic Tube Filling and Sealing Machine For Aluminum Tube

Quick Detail:

Filling volume :5-250ml

Feeding tube system: Inclined entire column feeding tube positions

operating speed: 60/min (max)

Model: LTRG-60A

Filling accuracy: ≤ ± 1%

Suitable hose length :50-210mm

Suitable for hose diameter: Φ10-50mm

Description:

1. Barrel internal mixing device

2. Easy to adjust filling volume, filling speed is adjustable.

3. The machine adopt fully stainless steel materials

4. Our Machine is suitable for both Aluminum tubes and plastic tubes.

5. Saddle folding Sealing device can be achieved by adjusting the folding three sides and saddle fold

6. Mezzanine barrel insulation device

7. It can be equipped with hopper heating system, anti-silk drawing filling head according to different materials.

8. Automatic control feeding device (pump)

9. Finished tube output conveyor

Applications:

This machine adopt fully stainless steel materials, the working process adopt button control as following: manual feeding tube 8-16 seat back and forth rotate, quantitative filling automatic cut, heating and sealing, eject the tube. All the above process adopt cylinder control, easy to adjust filling volume, filling speed is adjustable. This machine is suitable for the filling, sealing, print date, cut of various kinds of plastic and laminated tubes. The appearance of sealing of tube is beautiful and even, sealed firmly, high precision of filling volume, stable performance.

Specifications:

Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
