Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm
  • Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm
  • Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm
  • Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm

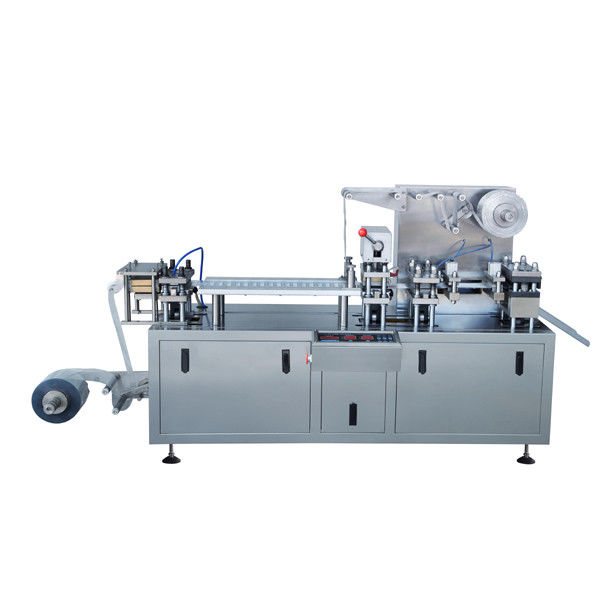

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number DPP-Series
Product Details
Model:
DPP-Series
Blanking Frequency:
15-40 Punches/min
Sheet’s Quantity Of One Blanking::
1sheets
Capacity:
900-2100sheets/hour
Adjustable Scope Of Feed Travel::
10-110mm
Max. Forming::
120*110*15mm
Power Supply::
380V 50Hz 5.5Kw
Overall Dimensions::
1650*500*1100mm
Packaging Dimension::
1800*650*1250mm
Weight::
650kg
High Light:

110mm automatic chocolate packing machine

,

Alu PVC automatic chocolate packing machine

,

Alu PVC chocolate bar packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Discuss personally
Packaging Details
woodern box
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description



Chewing Gum Chocolate Liquid Blister Packing Machine

Application:
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.







Features:
1).Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2). Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3). With manipulator towing and adjustable travel range, it can be suited for blister packing of various size.
4). Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste, and syringe etc.
5) GMP standard requirement
6) It is for Alu-PVC and ALu-Alu forming blister for capsule, pill and tablets



Remarks:
* Best option for small batches, pharmaceutical R&D and pilot plants.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.







Technical Parameter



Model

DPP-88

Blanking Frequency

15-40Punches/min

Sheet’s quantity of one blanking

1 sheets

Capacity

900-2100sheets/hour

Adjustable scope of feed travel

10-110mm

Max. Forming

120*110*15mm

Power Supply

380V 50Hz 5.5Kw

Overall Dimensions

1650*500*1100mm

Wrapper Specification(PVC)

120×(0.15-0.5)mm

Overall Dimension 1500*1300*1650mm

Packaging Dimension

1800*650*1250mm

Weight

650Kg

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm 0



Detail Picture

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm 1

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm 2

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm 3

Alu PVC Automatic Chocolate Packing Machine 40 Punches Min 110mm 4
