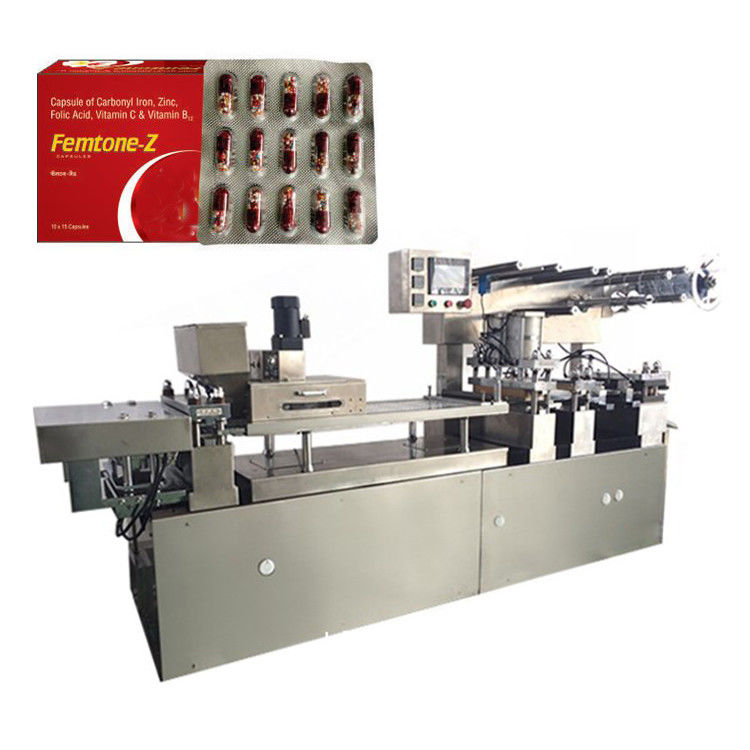

Automatic 650kg Tablet Packing Machine Pill DPP 88
  • Automatic 650kg Tablet Packing Machine Pill DPP 88
  • Automatic 650kg Tablet Packing Machine Pill DPP 88
  • Automatic 650kg Tablet Packing Machine Pill DPP 88

Automatic 650kg Tablet Packing Machine Pill DPP 88

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number DPP-Series
Product Details
Model:
DPP-Series
Blanking Frequency:
15-40 Punches/min
Sheet’s Quantity Of One Blanking::
1sheets
Capacity:
900-2100sheets/hour
Adjustable Scope Of Feed Travel::
10-110mm
Max. Forming::
120*110*15mm
Power Supply::
380V 50Hz 5.5Kw
Overall Dimensions::
1650*500*1100mm
Packaging Dimension::
1800*650*1250mm
Weight::
650kg
High Light:

DPP 88 tablet packing machine

,

650kg tablet packing machine

,

DPP 88 pill packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Discuss personally
Packaging Details
woodern box
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

Automatic High Speed Blister Packaging Machine for tablet/capsule/pill is a latest high-precision medicine packing machine in current pharmacy industry. it is widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry. it is also widely used in electron or hardware industry as all kind of shapes of AL-AL,AL-Plastic, paper-plastic combined sealing packing.







Automatic Blister Packaging Machine For Capsule 40 Punches/Min



Feature:


1. Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.


2. The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.


3. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend themachine’s life.


4. The equipment of trace pressing, batch number printing and scrap-collecting can be chose.


5. Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.


6. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).



Applications:



1. The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.

2. It can be equipped with cursor device etc. as customer's requirement.

3. Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.

4. Stroke can be adjust freely, widely used, ease of operation, stable running.



Automatic 650kg Tablet Packing Machine Pill DPP 88 0

Automatic 650kg Tablet Packing Machine Pill DPP 88 1



Technical Parameter



Model

DPP-88

Blanking Frequency

15-40Punches/min

Sheet’s quantity of one blanking

1 sheets

Capacity

900-2100sheets/hour

Adjustable scope of feed travel

10-110mm

Max. Forming

120*110*15mm

Power Supply

380V 50Hz 5.5Kw

Overall Dimensions

1650*500*1100mm

Wrapper Specification(PVC)

120×(0.15-0.5)mm

Overall Dimension 1500*1300*1650mm

Packaging Dimension

1800*650*1250mm

Weight

650Kg





Detail Picture

Automatic 650kg Tablet Packing Machine Pill DPP 88 2

Automatic 650kg Tablet Packing Machine Pill DPP 88 3

Automatic 650kg Tablet Packing Machine Pill DPP 88 4



Automatic 650kg Tablet Packing Machine Pill DPP 88 5



Automatic 650kg Tablet Packing Machine Pill DPP 88 6
