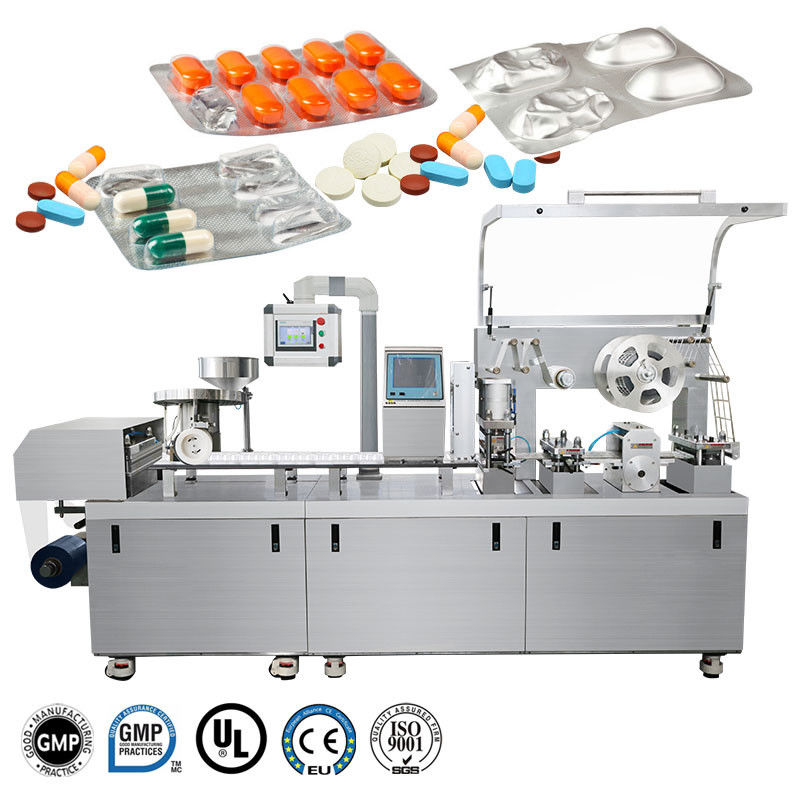

Pharmaceutical SGS Blister Packing Machine Capsule
  • Pharmaceutical SGS Blister Packing Machine Capsule
  • Pharmaceutical SGS Blister Packing Machine Capsule
  • Pharmaceutical SGS Blister Packing Machine Capsule

Pharmaceutical SGS Blister Packing Machine Capsule

Place of Origin China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number DPP-250A
Product Details
Warranty:
5 Years
Voltage:
380V/50Hz 220V/60Hz
Automatic Grade:
Automatic
Max.wide:
115mm
Max.thickness:
300 Microns(Optional: Up To 600)
Packaging Material:
PVC+Alu/Alu+Alu
Indexing Max:
75mm
Max.diameter:
200mm
High Light:

SGS Blister Packing Machine

,

Al PVC Blister Packing Machine

,

SGS capsule packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
In 25 days after receiving the deposit
Payment Terms
30% TT as deposit and 70% before shipping
Supply Ability
25 sets/Month
Product Description

Introduction



Aluminum Plastic/duralumin Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.





Features



Ø Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.

Ø With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.

Ø The machine station module type design of level frame, good sight, safe and convenient operation.

Ø Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.

Ø PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.

Ø The special design of mould in rectangle shape, ladder type fixing, provide much convenience and easy to mould replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.





Specifications:



MODEL: DPP-250
Blanking frequency (Cutting/min): 15-50
Sheet's quantity of one blanking (sheets): 1-4
Capacity (sheets/hour): 12,000
Adjustable scope of feed travel: (mm) 10-160
Max Forming area and depth (mm) 270×120×25
Capacity of air compressor(m3/min): ≥0.36
Power supply: 380V AC, 50 Hz, Three Phase
Total Power 8Kw

Wrapper specification (mm): PVC Film

Blister foil

Alu Alu Foil

Max.270× (0.15-0.5)

Max.270× (0.02-0.035)

Max. 270*(0.11-0.25)

Weight (kg): 1260Kg






Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
