| Place of Origin | China |
| Brand Name | LTPM CHINA |
| Certification | CE |
| Model Number | DPP-320 |

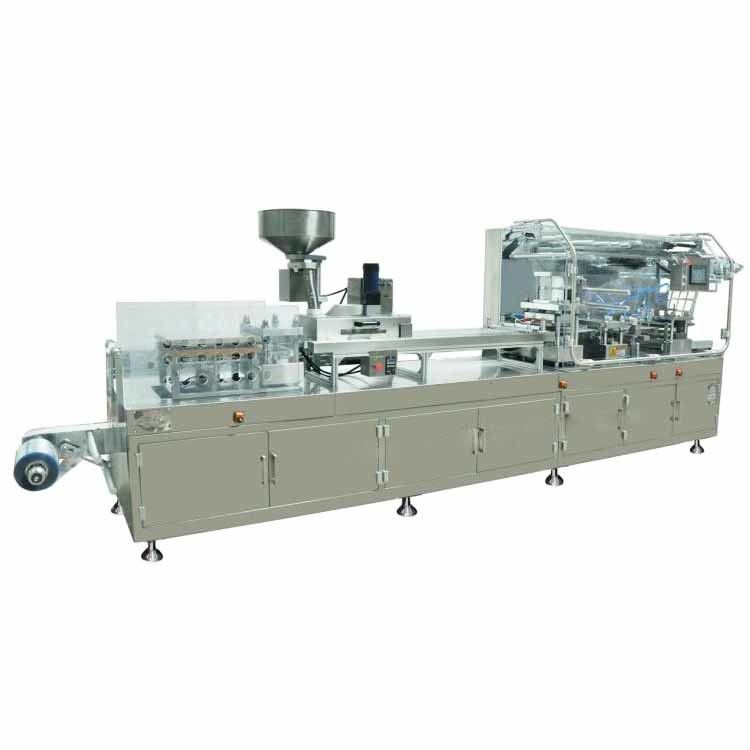

Designed by our company earliest and produced at largest batch process,mini-type bubble-cap packing machine is the smallest,lightest cheapest and energy consumption lowest packing equipment among the similar mode both in domestic and abroad .
This machine is widely suitable for new product preparation room of pharmaceutical section of people’s hospital ,small
pharmaceutical factory,drug rest
Feature
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors andnoises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of
medicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Specifications:
| Model | 320F | |
| Blanking Frequency(times/min) | 5-25 | |
| Sheet’s Quantity of One Blanking(sheets) | 5-6 | |
| Capacity(sheets/hour) | 7500-9000 | |
| Adjustable Scope of Feed Travel(mm) | 40-150 | |
| Max Forming Area and Depth (mm) | 320*130*15 | |
| Capacity of Air Compressor(m3/min) | ≥0.8 | |
| Power supply | 380V 50HZ 16.5KW | |
| Wrapper Specification (mm) | PVC For Medicine | 320*(0.15-0.5) |
| PTP Aluminum Foil | 320*(0.02-0.035) | |
| Overall Dimensions (mm) | 5800*850*1800 | |
| Weight (Kg) | 2400 | |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
Contact Us at Any Time
