160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine
  • 160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine
  • 160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine
  • 160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine

160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number ZH-120D
Product Details
Name:
ZH-120D Vertical Type Automatic Cartoning Machine
Model:
ZH-120D
Packing Speed:
50-100 Cartons/min
Carton Size Range:
L(65-125)mm×W(30-85)mm×H(12-50)mm
Carton Gram Requirements:
250-350g/m3
Motor Power:
1.5KW
Power Supply:
Three Phase 220V 60Hz
Weight:
1100Kg
Dimension:
2150×1140×1800 Mm
Air Consumption:
120-160L/min
Air Pressure:
0.6 Mpa
Machine Noise:
≤80dB
High Light:

160L sachet cartoning machine

,

ZH-120D sachet cartoning machine

,

ZH-120D cosmetic packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, Western union, Moneygram
Supply Ability
25 days/month
Product Description

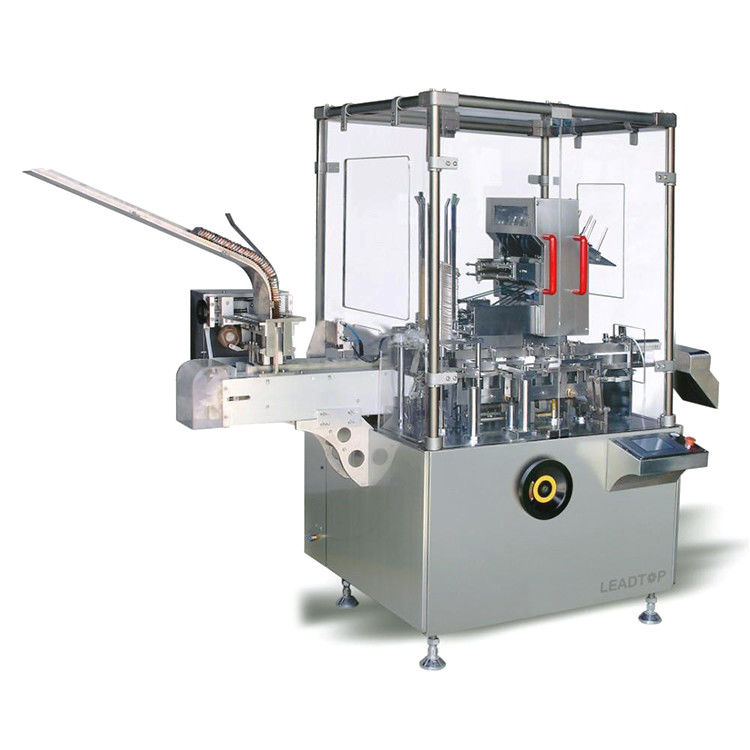

ZH-120D Vertical Type Automatic Cartoning Machine



We look forward to cooperating with you, any questions, please feel free to let me know.



Products Description



This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product



incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize



encasing fast, keep running steady and reliable when fast running.This machine is suitable for automatic feeding product of multi-



variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of



blisters on touch screen randomly. On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton



opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device.



Automatically reject lacking of leaflet or prodcut and finished product out.



Feature:



1.The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum



2.No suction carton by missing blister



3.No suction carton by missing leaflet



4.Automatically displaying device for trouble, speed and finished products counting



5.Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton



after return or no cartons or out of leaflets continuous.



6.Adopt human-machine operation system.



7.International famous brand of electric components such for PLC touch screen, frequency inverters, etc



8.Stable performance, operation is easy Controls



Installation and after sales service:



Installing and Commission: We will install and test the machine in best working condition before shipment.



If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there.



All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be



payable by you. In case the stay of our technician, the service charges US $ 100 per day will be charged extra.





Technical Parameter



Model ZH-120D
Packing speed 50-100carton/min

Carton size range

L(65-125)mm×W(30-85)mm×H(12-50)mm

Carton gram requirements

250-350g/m3

Motor power

1.5KW

Power supply

Three phase 220V 60hz
Machine noise less than 80 dB
Air pressure 0.5-0.8 Mpa
Air consumption  150L/min
Dimension  2150*1140*1800mm
Weight 1100KG
Warranty  5 years





Detail picture



160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine 0160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine 1160L Sachet Cartoning Machine ZH-120D Cosmetic Packaging Machine 2
