ZH-50 Automatic Vertical Packing Machine
  • ZH-50 Automatic Vertical Packing Machine
  • ZH-50 Automatic Vertical Packing Machine
  • ZH-50 Automatic Vertical Packing Machine

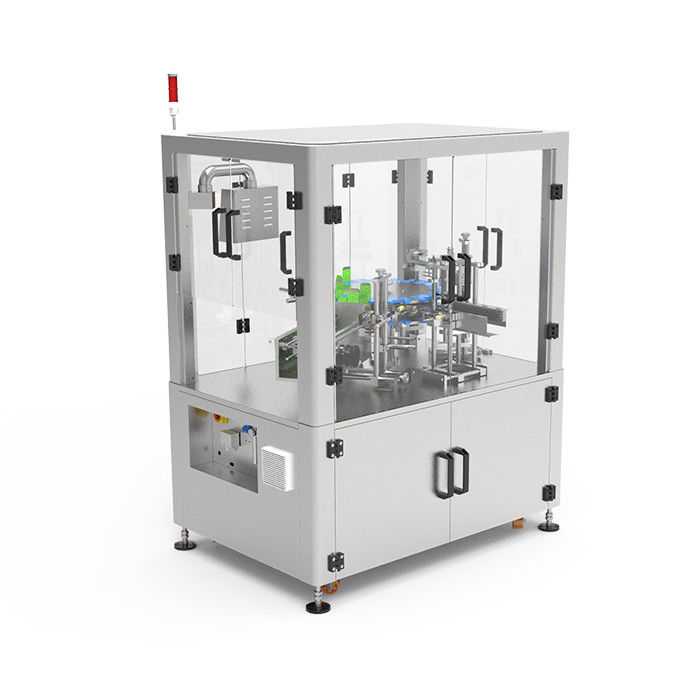

ZH-50 Automatic Vertical Packing Machine

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number ZH-50
Product Details
Model:
ZH-50
Machine Noise:
≤80dB
Capacity:
20-50cartons/min
Power:
1.5Kw
Carton Gram Requirements:
250-350g/m3
Air Pressure:
0.5-0.8Mpa
High Light:

ZH-50 automatic vertical packing machine

,

1.5Kw automatic vertical packing machine

,

1.5Kw compact packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

It is applied to a variety of foods and daily necessities. The operation process is as follows: automatic carton forming,automatic feeding, automatic forming of carton hooks, and bottoming of products. Push the paper tray and seal the box.

ZH-50 Automatic Vertical Packing Machine 0

APPLICATION :
Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.


OPTION :
Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code


FEATURES:



1.This equipment is specially designed for small output and multi-size carton packaging.

2.Small footprint, economical and practical and suitable for a variety of boxes.

3.Save labor cost, 40 boxes per person per minute, greatly improving production efficiency.

4.The whole equipment is made of stainless steel 304.

5.The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.

6.Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.

7.The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.

8.This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.

9.Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.


Packing Process:
1. Push box into star wheel.
2. Fold box lower small flap.
3. Press both lower big flaps.
4. Flatten both big flaps.
5. Product fall into box.
6. Fold box upper small flap.
7. Press both upper big flaps.
8. Flatten both big flaps.
9. Product push out.



Product Parameters:



Model No. ZH-50
Packing speed: 20-50box per min
Paper box's largest size 200*80*80mm
Paper box's smallest size 60*20*20 mm
Paper quality of carton 250-350g/m3
Motor horsepower 1/4HP 15:1
Power supply 220V 50/60HZ single phase
Machine noise ≤80dB
Gas source 0.5-0.8 Mpa
Compress air consumption 150L/min
Machine measurement: 1100*1500*1900 mm
Machine weight 250Kg





ZH-50 Automatic Vertical Packing Machine 1
