Automatic Cartoning Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM CHINA |
| Certification | CE |
| Model Number | ZH-50 |

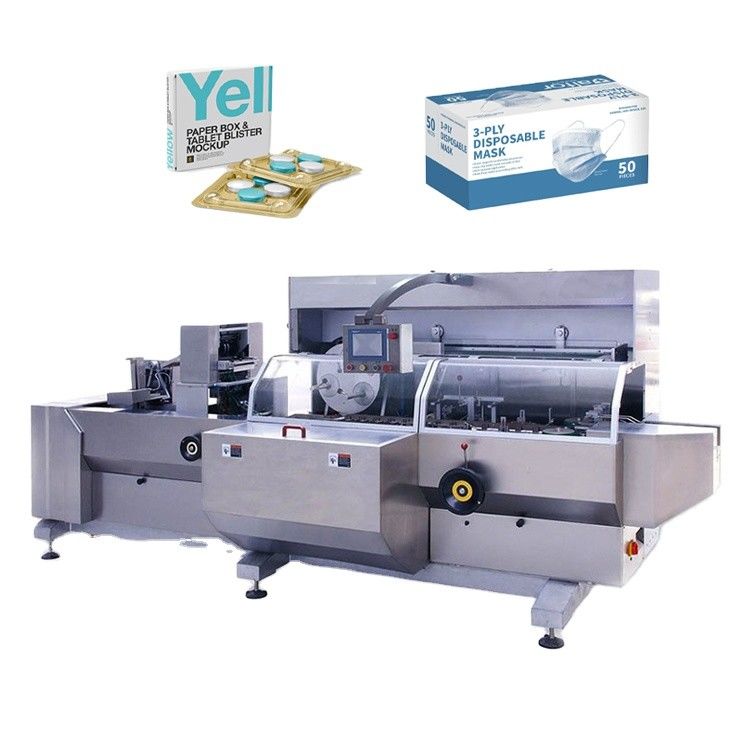

Zh-50 Wholesale China Factory Automatic Bottle Carton Box Packing Machine
Automatic Box Cartoning Machine can achieve full automatic products conveying feeding, box feeding, box opening, products pushing, box folding, finished carton box package discharging. It is applied to a variety of foods, toys, cosmetics, medicine, beverage, electronics and daily necessities. It can save a lot of labour cost which equals to 8-20 workers.
Features:
Long box feeding shelf.
machine delay stop and alarm when boxes run out.
No products, no box feeding.
Adjustable for different size boxes.
Servo motor feeding system.
PLC touch screen, easy to operate.
Specifications:
| Model | ZH-50 |
| Packing speed | 20-50 Cartons/min |
| Carton size range | L(40-125)mm×W(12-80)mm×H(12-80)mm |
| Carton gram requirements | 250-350g/m3 |
| Motor power | 1.5KW |
| Power supply | Three phase 380V 50Hz |
| Machine noise | ≤80dB |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Dimension | 1100×1500×1900 mm |
| Weight | 250Kg |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore
Machine Loading Job for shipment:
Clients' Site Traing and Adjusting Job:
Certification and Workshop:
