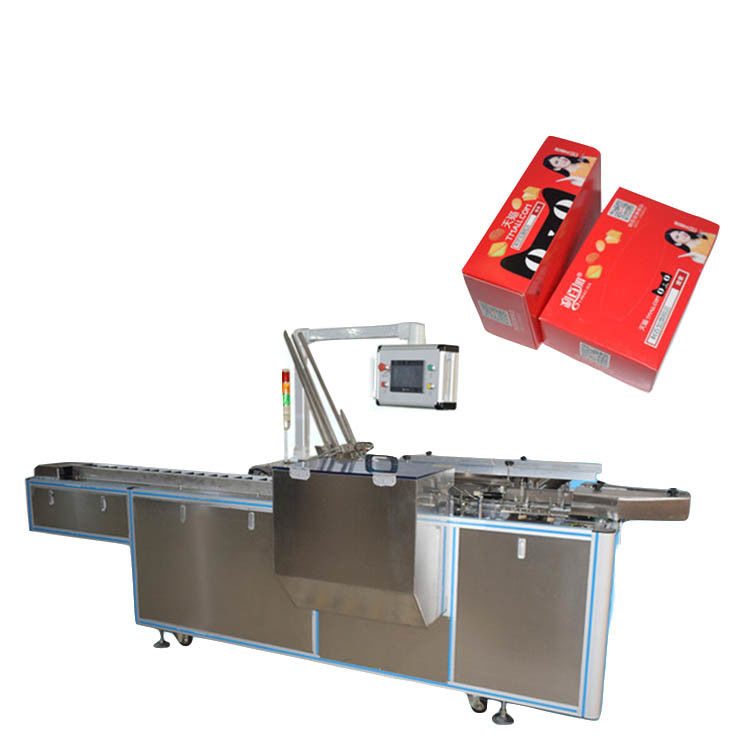

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine
  • New Auto Feed Touch Screen High Technology Automatic Cartoning Machine
  • New Auto Feed Touch Screen High Technology Automatic Cartoning Machine

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine

Place of Origin ZheJiang,CHINA(Mainland)
Brand Name LTPM CHINA
Certification CE ISO
Model Number ZH-300
Product Details
Cartoning Speed:
240cartons/min(carton Size 119*119MM)
Max Material Size(L*W*H):
(65-190)*(30-115)*(4-12)mm
Max Carton Size(L*W*H):
(70-200)*(35-120)*(20-70)mm
Air Consumption:
≥0.2m3/min
Compressed Air Pressure:
0.5-0.7Mpa
Power Supply:
Three Phase 220V 60HZ
Dimension(L*W*H):
4950X1600X1700mm
Weight:
3500Kg
High Light:

cartoning equipment

,

automatic carton packing machine

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Packed Export Standard Wooden Case can afford Long time sea shipment with anti-moisture function.
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine





CHARACTER:

1.auto feed , open the box , fill the box , sealingbox and select box once time ;

2.Touch screen ,PLC control , high technology,operate easy ;

3. Photo electricity trace system check the ,removethe empty box , save the packing material ;

4.For difference packing size , adjustable easy ,noneed change the mode ;

5.Auto protect system, once the goods not entrybox fully ,or overloading ;

6.With the glass cover ,safety and beautiful ;

7.This machine can join with packing machine , 3Dpacking , filling machine , labeling machine ,codemachine work together ,become the completelyline ;



Specifications:

Model ZH-120
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (65-125)×(30-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Noise <70 dB

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 0New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 1New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 2New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 3New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 4New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 5New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 6

Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore





Machine Loading Job for shipment:

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 7



Clients' Site Traing and Adjusting Job:



New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 8

Certification and Workshop:

New Auto Feed Touch Screen High Technology Automatic Cartoning Machine 9
