Ampoule Vials Glass Plastic Bottle Automatic Carton Packaging Cartoning Machine
  • Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine
  • Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine

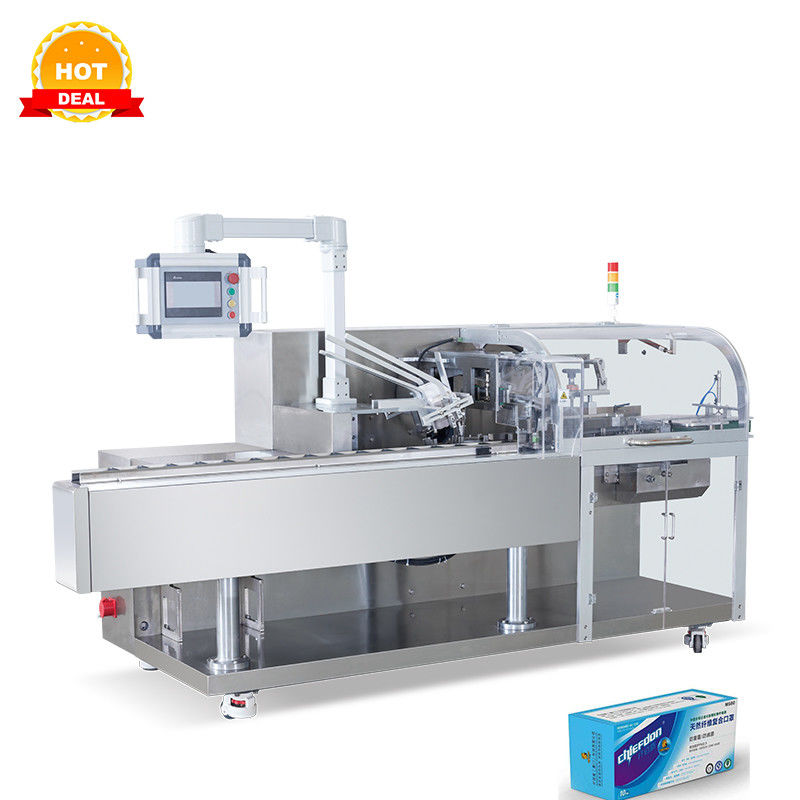

Ampoule Vials Glass Plastic Bottle Automatic Carton Packaging Cartoning Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number ZH-100
Product Details
High Light:

cartoning equipment

,

automatic carton packing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T, L/C, D/P
Supply Ability
25 sets/Month
Product Description

Ampoule Vials Glass Plastic Bottle Automatic Carton Packaging Cartoning Machine​




Ampoule Vials Glass Plastic Bottle Automatic Carton Packaging Cartoning Machine can achieve full automatic products conveying feeding, box feeding, box opening, products pushing, box folding, finished carton box package discharging. It is applied to a variety of foods, toys, cosmetics, medicine, beverage, electronics and daily necessities.


Model ZH-100
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (12-125)×(12-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Noise <70 dB


 Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 0Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 1Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 2Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 3Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 4Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 5

Ampoule Vials Glass Plastic Bottle Automatic Carton  Packaging Cartoning Machine 6



 Competitive Advantage:

1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4. Vibrating material categorizing and feeding mechanism is stable and reliable.
5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
