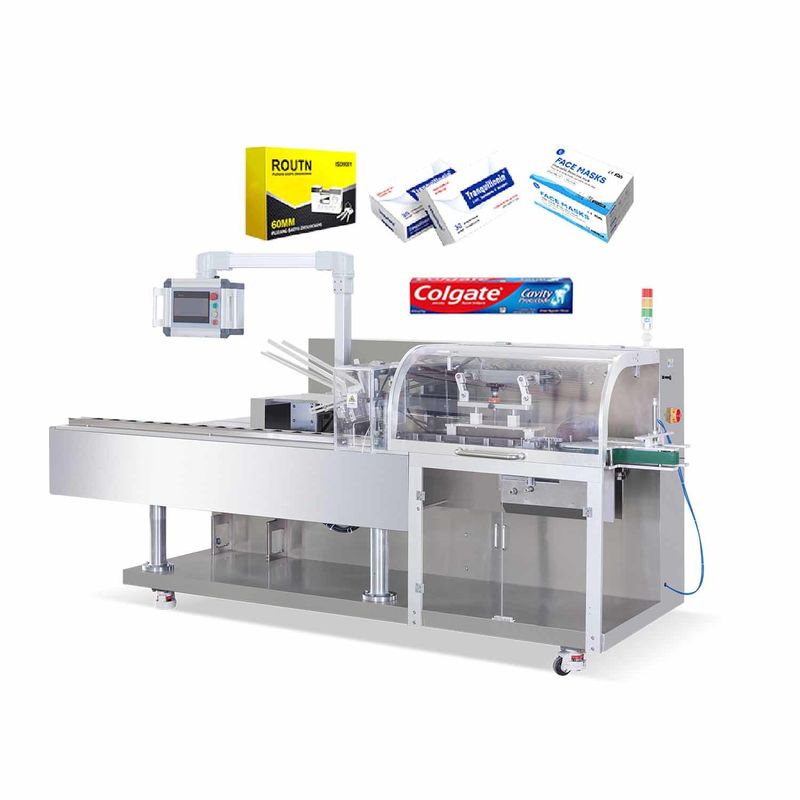

160L Min Cartoner Packaging Machine
  • 160L Min Cartoner Packaging Machine
  • 160L Min Cartoner Packaging Machine

160L Min Cartoner Packaging Machine

Place of Origin China
Brand Name LTPM CHINA
Certification CE
Model Number ZH-120D
Product Details
Application:
Food, Beverage, Commodity, MEDICAL, Chemical
Packaging Material:
Paper
Mechanical Parts:
Stainless Steel
Warranty:
5 Years
Condition:
New
Packaging Type:
Cartons
Key Selling Points:
Easy To Operate
Function:
Insert Aluminum Foil Into Carton Box And Seal Box
High Light:

160L min cartoner packaging machine

,

ZH 120 cartoner packaging machine

,

ZH 120 fully automatic box taping machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negociation
Packaging Details
Wooden Case
Delivery Time
within 25 days after receiving the deposit
Payment Terms
30% TT as deposit and 70% before shipping
Supply Ability
25 sets
Product Description



Multi Function Toothpaste/Mask /Medicine Automatic Carton Box Packaging Machine



Automatic Box Cartoning Machine can achieve full automatic products conveying feeding, box feeding, box opening, products pushing, box folding, finished carton box package discharging. It is applied to a variety of foods, toys, cosmetics, medicine, beverage, electronics and daily necessities. It can save a lot of labour cost which equals to 8-20 workers.



Applications:

1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

4) Vibrating material categorizing and feeding mechanism is stable and reliable.

5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure



Specifications:

Model ZH-120
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (65-125)×(30-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Noise <70 dB

160L Min Cartoner Packaging Machine 0160L Min Cartoner Packaging Machine 1160L Min Cartoner Packaging Machine 2160L Min Cartoner Packaging Machine 3160L Min Cartoner Packaging Machine 4160L Min Cartoner Packaging Machine 5

160L Min Cartoner Packaging Machine 6

Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
