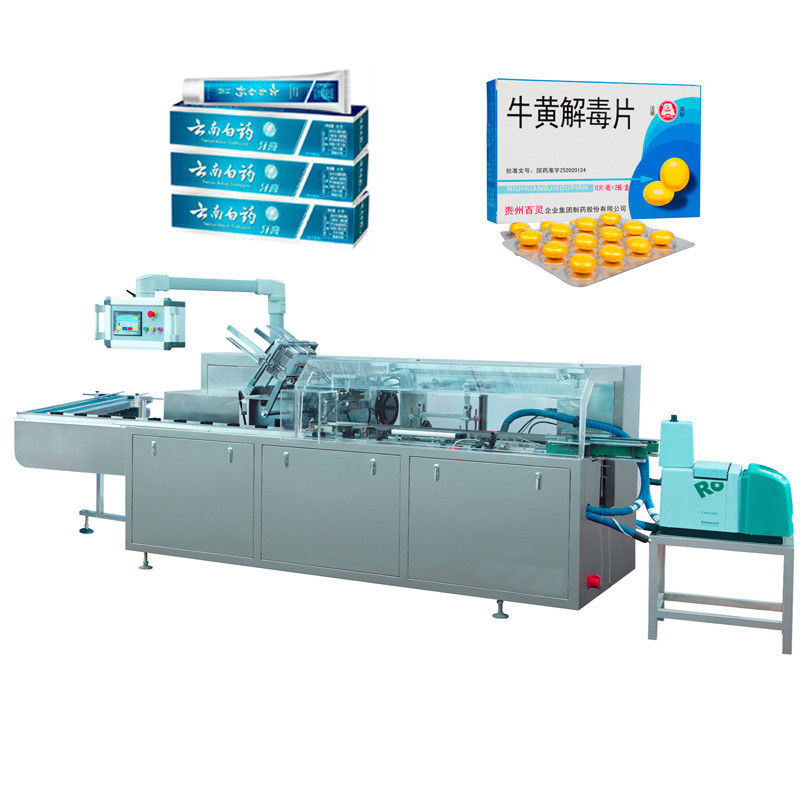

Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic Cartoning Sealing Machine
  • Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine
  • Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine

Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic Cartoning Sealing Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number ZH-100
Product Details
High Light:

auto cartoning machine

,

automatic carton packing machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T, L/C, D/P
Supply Ability
25 sets/Month
Product Description

Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic Cartoning Sealing Machine



Automatic cartoning machine suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line. It is the best choice for mass production.



Applications:

This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)



Specifications:

Model ZH-100
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (12-125)×(12-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Noise <70 dB

Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine 0Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine 1Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine 2Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine 3Pharmaceuticals / Food / Household / Chemicals / Cigarette Box Automatic  Cartoning Sealing Machine 4

Competitive Advantage:

1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

4. Vibrating material categorizing and feeding mechanism is stable and reliable.

5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
